XLPE INSULATED FIRE-RESISTNAT SHIELDED CONTROL CABLE FOR MARINE AND OFFSHORE 150/250V 90℃
Example: CKJPF/NSC, CKJPJ/NSC, CKJ82/NSA, CKJ85/NSC, CKJ86/NSC, CKJV82/NSA, CKJV92/NSA, CKJPF86/NSC, CKJPF96/NSC, CKJPJ85/NSC, CKJPJ95/NSC

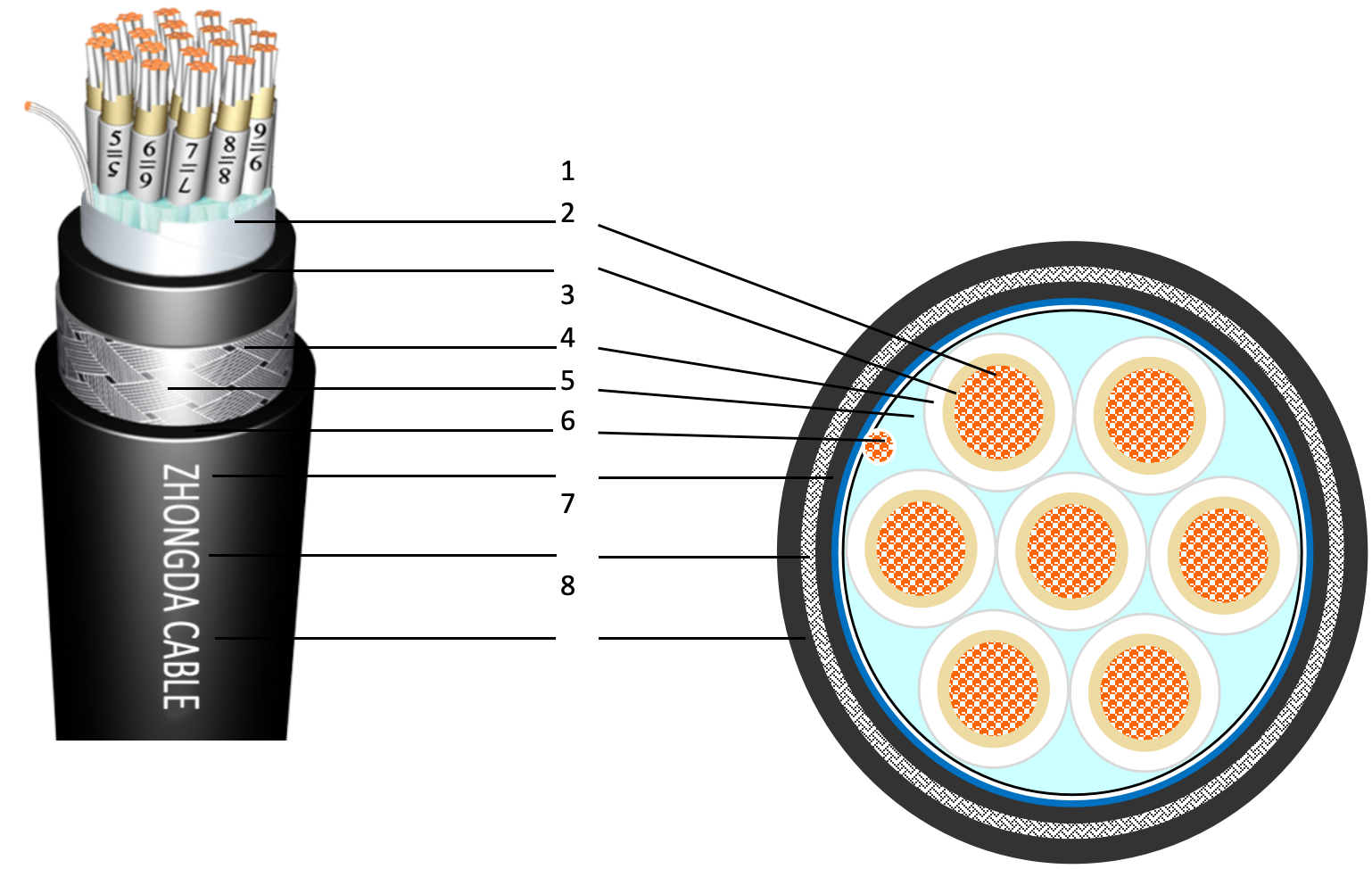

Construction
| Components | Code Letter | Material or requirements | ||||||
| Series Code | CK | Marine cable for control system | ||||||
| Conductor (1) | - | Stranded copper wire | ||||||
| Fire resistant tape (2) | - | Mica/glass tape | ||||||
| Insulation (3) | J | Cross-linked polyethylene (XLPE) | ||||||
| Filler and tape (4) | - | Non-hygroscopic material (if any) | ||||||
| Collective Screen (5) | - | Aluminium foil tape plus one drain wire | ||||||
| Inner sheath (6) | V | Polyvinyl chloride (PVC) | ||||||
| PF | Thermoplastic polyolefin (SH1) | |||||||
| PJ | Thermoset polyolefin (SHF2) | |||||||
| Armor (7) | 8 | Tinned copper wire braided | ||||||
| 9 | Galvanized steel wire braided | |||||||
| Outer sheath (8) | 2 | Polyvinyl chloride (PVC) | ||||||
| 5 | Thermoset polyolefin (SHF2) | |||||||
| 6 | Thermoplastic polyolefin (SH1) | |||||||
| Fire resistance | N | Fire resistance IEC 60331 | ||||||
| Flame retardant | S | Flame retardant for bunched wires or cables | ||||||
| Low smoke and halogen free | A | Smoke, halogen and toxicity | ||||||
| 1C | Low smoke, halogen free and low toxicity | |||||||
Standards applied
Construction：IEC 60092-350, 376
Conductor：IEC 60228 Class 2
Insulation & Sheath：IEC 60092-360
Flame Retardant：IEC 60332-1
Flame Retardant：IEC 60332-3-22 Cat.A
1 Smoke Density：IEC 61034
1 Halogen Index：IEC 60754
1 Fluorine Content：IEC 60684-2
*UV Resistance：UL1581-2011
*Cold Resistance：IEC 60811-1-4
Cores identification
Cores：Print black number on white core
*Others provided upon request
Outer sheath color
Black, or others upon request
Main characteristics：
Operating temperature：-15℃(1*-60℃)～+90℃
Test voltage：1.5kV/5min
1Smoke density of completed cable：≥60%
Application
The cable is mainly intended for the control system of shipboard and offshore buildings, as well as other related industries.
1 Standards only available for polyolefin sheath.
*Standards or performance provided upon request.
| Type | Description | |||||||
| CKJPF/NSC | XLPE insulated, low-smoke, halogen-free and fire-resistant shielded control cable with polyolefin sheath (SHF1) for marine and offshore | |||||||
| CKJPJ/NSC | XLPE insulated, low-smoke, halogen-free and fire-resistant shielded control cable with cross-linked polyolefin sheath (SHF2) for marine and offshore | |||||||
| CKJ82/NSA | XLPE insulated, fire-resistant shielded control cable with copper wire braiding and PVC outer sheath for marine and offshore | |||||||
| CKJ85/NSC | XLPE insulated, low-smoke, halogen-free and fire-resistant shielded control cable with copper wire braiding and cross-linked polyolefin outer sheath (SHF2) for marine and offshore | |||||||
| CKJ86/NSC | XLPE insulated, low-smoke, halogen-free and fire-resistant shielded control cable with copper wire braiding and polyolefin outer sheath (SHF1) for marine and offshore | |||||||
| CKJV82/NSA | XLPE insulated, fire-resistant shielded control cable with PVC inner sheath, copper wire braiding and PVC outer sheath for marine and offshore | |||||||
| CKJV92/NSA | XLPE insulated, fire-resistant shielded control cable with PVC inner sheath, galvanized steel wire braiding and PVC outer sheath for marine and offshore | |||||||
| CKJPF86/NSC | XLPE insulated, low-smoke, halogen-free and fire-resistant shielded control cable with polyolefin inner sheath (SHF1), copper wire braiding and polyolefin outer sheath (SHF1) for marine and offshore | |||||||
| CKJPF96/NSC | XLPE insulated, low-smoke, halogen-free and fire-resistant shielded control cable with polyolefin inner sheath (SHF1), galvanized steel wire braiding and polyolefin outer sheath (SHF1) for marine and offshore | |||||||
| CKJPJ85/NSC | XLPE insulated, low-smoke, halogen-free and fire-resistant shielded control cable with cross-linked polyolefin inner sheath (SHF2), copper wire braiding and cross-linked polyolefin outer sheath (SHF2) for marine and offshore | |||||||
| CKJPJ95/NSC | XLPE insulated, low-smoke, halogen-free and fire-resistant shielded control cable with cross-linked polyolefin inner sheath (SHF2), galvanized steel wire braiding and cross-linked polyolefin outer sheath (SHF2) for marine and offshore | |||||||
| SIZE | |||||
| 2×0.5 | 2×0.75 | 2×1 | 2×1.5 | 2×2.5 | |
| 3×0.5 | 3×0.75 | 3×1 | 3×1.5 | 3×2.5 | |
| 4×0.5 | 4×0.75 | 4×1 | 4×1.5 | 4×2.5 | |
| 5×0.5 | 5×0.75 | 5×1 | 5×1.5 | 5×2.5 | |
| 6×0.5 | 6×0.75 | 6×1 | 6×1.5 | 6×2.5 | |
| 7×0.5 | 7×0.75 | 7×1 | 7×1.5 | 7×2.5 | |
| 10×0.5 | 10×0.75 | 10×1 | 10×1.5 | 10×2.5 | |
| 12×0.5 | 12×0.75 | 12×1 | 12×1.5 | 12×2.5 | |
| 14×0.5 | 14×0.75 | 14×1 | 14×1.5 | 14×2.5 | |
| 16×0.5 | 16×0.75 | 16×1 | 16×1.5 | 16×2.5 | |
| 19×0.5 | 19×0.75 | 19×1 | 19×1.5 | 19×2.5 | |
| 24×0.5 | 24×0.75 | 24×1 | 24×1.5 | 24×2.5 | |
| 27×0.5 | 27×0.75 | 27×1 | 27×1.5 | 27×2.5 | |
| 30×0.5 | 30×0.75 | 30×1 | 30×1.5 | 30×2.5 | |
| 33×0.5 | 33×0.75 | 33×1 | 33×1.5 | 33×2.5 | |
| 37×0.5 | 37×0.75 | 37×1 | 37×1.5 | 37×2.5 | |
