XLPE INSULATED TWISTED PAIR SHIELDED FIRE-RESISTANT COMPUTER CABLE FOR MARINE AND OFFSHORE 150/250V 90℃
Example: CHJVP/NSA, CHJPFP/NSC, CHJPJP/NSC, CHJP82/NSA, CHJP85/NSC, CHJP86/NSC,CHJVP82/NSA, CHJVP92/NSA, CHJPJP85/NSC, CHJPJP95/NSC, CHJPFP86/NSC, CHJPFP96/NSC

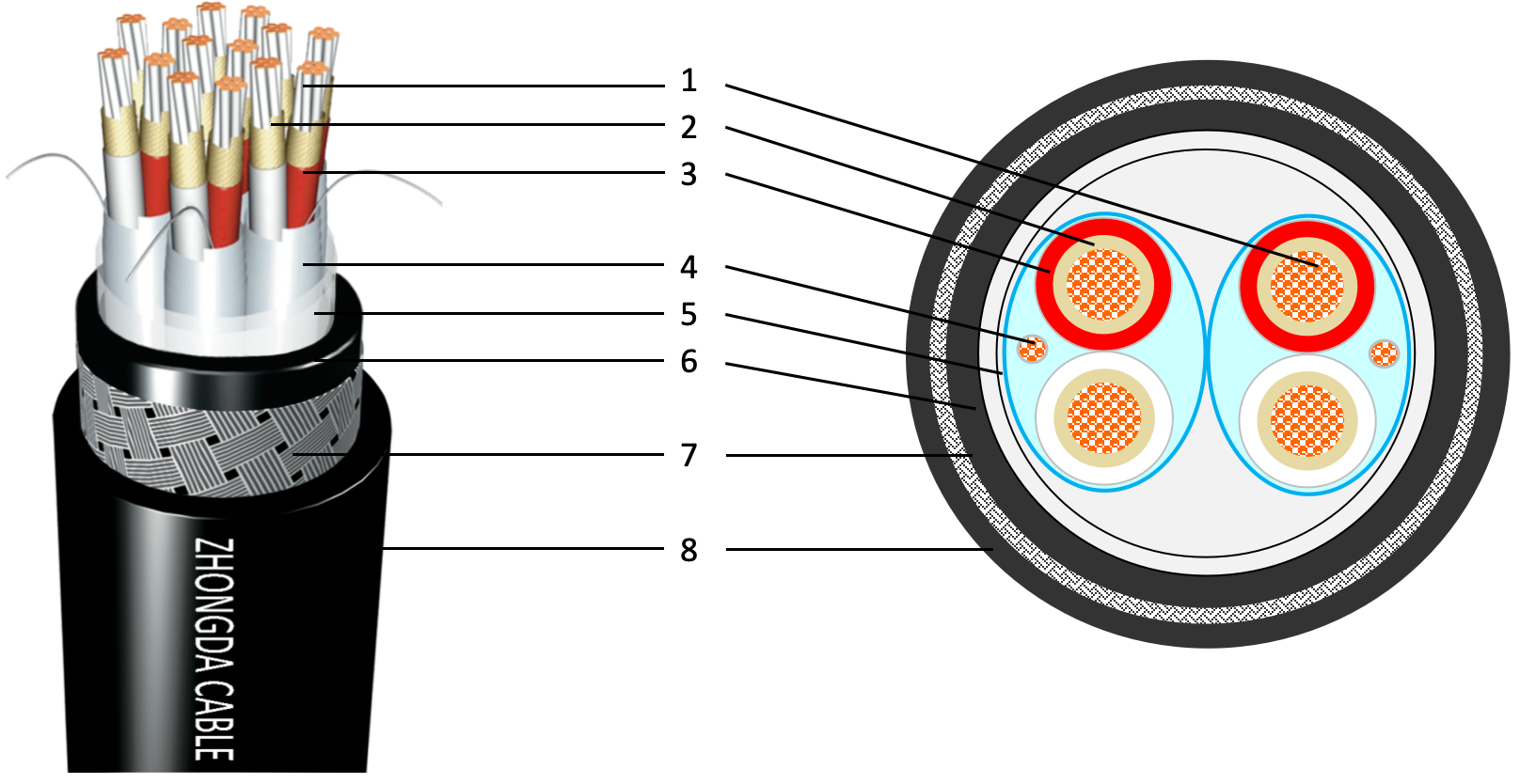

Construction
| Components | Code Letter | Material or requirements | |||||
| Series Code | CH | Marine computer cable | |||||
| Conductor (1) | - | Stranded copper wire | |||||
| Fire resistant tape (2) | - | Mica/glass tape | |||||
| Insulation (3) | J | Cross-linked polyethylene (XLPE) | |||||
| Twisted-pair shield/Pair Screen (4) | P | Aluminum foil & tinned copper drain wire | |||||
| Filler and tape (5) | - | Non-hygroscopic material (if any) | |||||
| Inner sheath (6) | V | Polyvinyl chloride (PVC) | |||||
| PF | Thermoplastic polyolefin (SH1) | ||||||
| PJ | Thermoset polyolefin (SHF2) | ||||||
| Armor (7) | 8 | Tinned copper wire braided | |||||
| 9 | Galvanized steel wire braided | ||||||
| Outer sheath (8) | 2 | Polyvinyl chloride (PVC) | |||||
| 5 | Thermoset polyolefin (SHF2) | ||||||
| 6 | Thermoplastic polyolefin (SH1) | ||||||
| Fire resistance | N | Fire resistance IEC 60331 | |||||
| Flame retardant | S | Flame retardant for bunched wires or cables | |||||
| Low smoke and halogen free | A | Smoke, halogen and toxicity | |||||
| 1C | Low smoke, halogen free and low toxicity | ||||||
Standards applied
Construction：IEC 60092-350, 376
Conductor：IEC 60228 Class 2
Insulation & Sheath：IEC 60092-360
Flame Retardant：IEC 60332-1
Flame Retardant：IEC 60332-3-22 Cat.A
1 Smoke Density：IEC 61034
1 Halogen Index：IEC 60754
1 Fluorine Content：IEC 60684-2
*UV Resistance：UL1581-2011
*Cold Resistance：IEC 60811-1-4
Cores identification
1 Pair：Red, White
1 Quad：Red, White, Black, Blue
Multi Pair：Print pair number on cores
Multi Triad：Print triad number on cores
Multi Quad：Print quad number on cores
Outer sheath color
Black, or others upon request
Main characteristics：
Operating temperature：-15℃(1*-60℃)～+90℃
Test voltage：1.5kV/5min
1Smoke density of completed cable：≥60%
Application
The cable is mainly intended for telecommunication, computer and information proceeding units of shipboard and offshore buildings.
1 Standards only available for polyolefin sheath
* Standards or performance provided upon request
| Type | Description | ||||||
| CHJVP/NSA | XLPE insulated twisted pair shielded fire resistant computer cable with PVC sheath for marine and offshore | ||||||
| CHJPFP/NSC | XLPE insulated twisted pair shielded low smoke, halogen free and fire resistant computer cable with polyolefin sheath (SHF1) for marine and offshore | ||||||
| CHJPJP/NSC | XLPE insulated twisted pair shielded low smoke, halogen free and fire resistant computer cable with cross linked polyolefin sheath (SHF2) for marine and offshore | ||||||
| CHJP82/NSA | XLPE insulated twisted pair shielded fire resistant computer cable with copper wire braiding and PVC outer sheath for marine and offshore | ||||||
| CHJP85/NSC | XLPE insulated twisted pair shielded low smoke, halogen free and fire resistant computer cable with copper wire braiding and cross linked polyolefin outer sheath (SHF2) for marine and offshore | ||||||
| CHJP86/NSC | XLPE insulated twisted pair shielded low smoke, halogen free and fire resistant computer cable with copper wire braiding and polyolefin outer sheath (SHF1) for marine and offshore | ||||||
| CHJVP82/NSA | XLPE insulated twisted pair shielded fire resistant computer cable with PVC inner sheath, copper wire braiding and PVC outer sheath for marine and offshore | ||||||
| CHJVP92/NSA | XLPE insulated twisted pair shielded fire resistant computer cable with PVC inner sheath, galvanized steel wire braiding and PVC outer sheath for marine and offshore | ||||||
| CHJPFP86/NSC | XLPE insulated twisted pair shielded low smoke, halogen free and fire resistant computer cable with polyolefin inner sheath (SHF1), copper wire braiding and polyolefin outer sheath (SHF1) for marine and offshore | ||||||
| CHJPFP96/NSC | XLPE insulated twisted pair shielded low smoke, halogen free and fire resistant computer cable with polyolefin inner sheath (SHF1), galvanized steel wire braiding and polyolefin outer sheath (SHF1) for marine and offshore | ||||||
| CHJPJP85/NSC | XLPE insulated twisted pair shielded low smoke, halogen free and fire resistant computer cable with cross linked polyolefin inner sheath (SHF2), copper wire braiding and cross linked polyolefin outer sheath (SHF2) for marine and offshore | ||||||
| CHJPJP95/NSC | XLPE insulated twisted pair shielded low smoke, halogen free and fire resistant computer cable with cross linked polyolefin inner sheath (SHF2), galvanized steel wire braiding and cross linked polyolefin outer sheath (SHF2) for marine and offshore | ||||||
| Size | ||||||
| 1x2x0.5 | 1x2x0.75 | 1x2x1 | 1x2x1.5 | 1x2x2.5 | 1x3x1 | 1x3x1.5 |
| 2x2x0.5 | 2x2x0.75 | 2x2x1 | 2x2x1.5 | 2x2x2.5 | 2x3x1 | 2x3x1.5 |
| 3x2x0.5 | 3x2x0.75 | 3x2x1 | 3x2x1.5 | 3x2x2.5 | 3x3x1 | 3x3x1.5 |
| 4x2x0.5 | 4x2x0.75 | 4x2x1 | 4x2x1.5 | 4x2x2.5 | 4x3x1 | 4x3x1.5 |
| 5x2x0.5 | 5x2x0.75 | 5x2x1 | 5x2x1.5 | 5x2x2.5 | 5x3x1 | 5x3x1.5 |
| 7x2x0.5 | 7x2x0.75 | 7x2x1 | 7x2x1.5 | 7x2x2.5 | 7x3x1 | 7x3x1.5 |
| 10x2x0.5 | 10x2x0.75 | 10x2x1 | 10x2x1.5 | 10x2x2.5 | 10x3x1 | 10x3x1.5 |
| 12x2x0.5 | 12x2x0.75 | 12x2x1 | 12x2x1.5 | 12x2x2.5 | 12x3x1 | 12x3x1.5 |
| 14x2x0.5 | 14x2x0.75 | 14x2x1 | 14x2x1.5 | 14x2x2.5 | 14x3x1 | 14x3x1.5 |
| 16x2x0.5 | 16x2x0.75 | 16x2x1 | 16x2x1.5 | 16x2x2.5 | 16x3x1 | 16x3x1.5 |
| 19x2x0.5 | 19x2x0.75 | 19x2x1 | 19x2x1.5 | 19x2x2.5 | 19x3x1 | 19x3x1.5 |
| 24x2x0.5 | 24x2x0.75 | 24x2x1 | 24x2x1.5 | 24x2x2.5 | 24x3x1 | 24x3x1.5 |
| 27x2x0.5 | 27x2x0.75 | 27x2x1 | 27x2x1.5 | 27x2x2.5 | 27x3x1 | 27x3x1.5 |
| 30x2x0.5 | 30x2x0.75 | 30x2x1 | 30x2x1.5 | 30x2x2.5 | 30x3x1 | 30x3x1.5 |
| 33x2x0.5 | 33x2x0.75 | 33x2x1 | 33x2x1.5 | 33x2x2.5 | 33x3x1 | 33x3x1.5 |
| 37x2x0.5 | 37x2x0.75 | 37x2x1 | 37x2x1.5 | 37x2x2.5 | 37x3x1 | 37x3x1.5 |
