HALOGEN-FREE LOW-SMOKE FIRE-RESISTANT LOW VOLTAGE CABLE FOR MARINE & OFFSHORE 0.6/1kV 90℃
Example: CJPF/NSC, CJPJ/NSC, CJ85/NSC, CJ86/NSC, CJPJ85/NSC, CJPJ95/NSC, CJPF86/NSC, CJPF96/NSC, CJV/NSA, CJ82/NSA, CJV82/NSA, CJV92/NSA

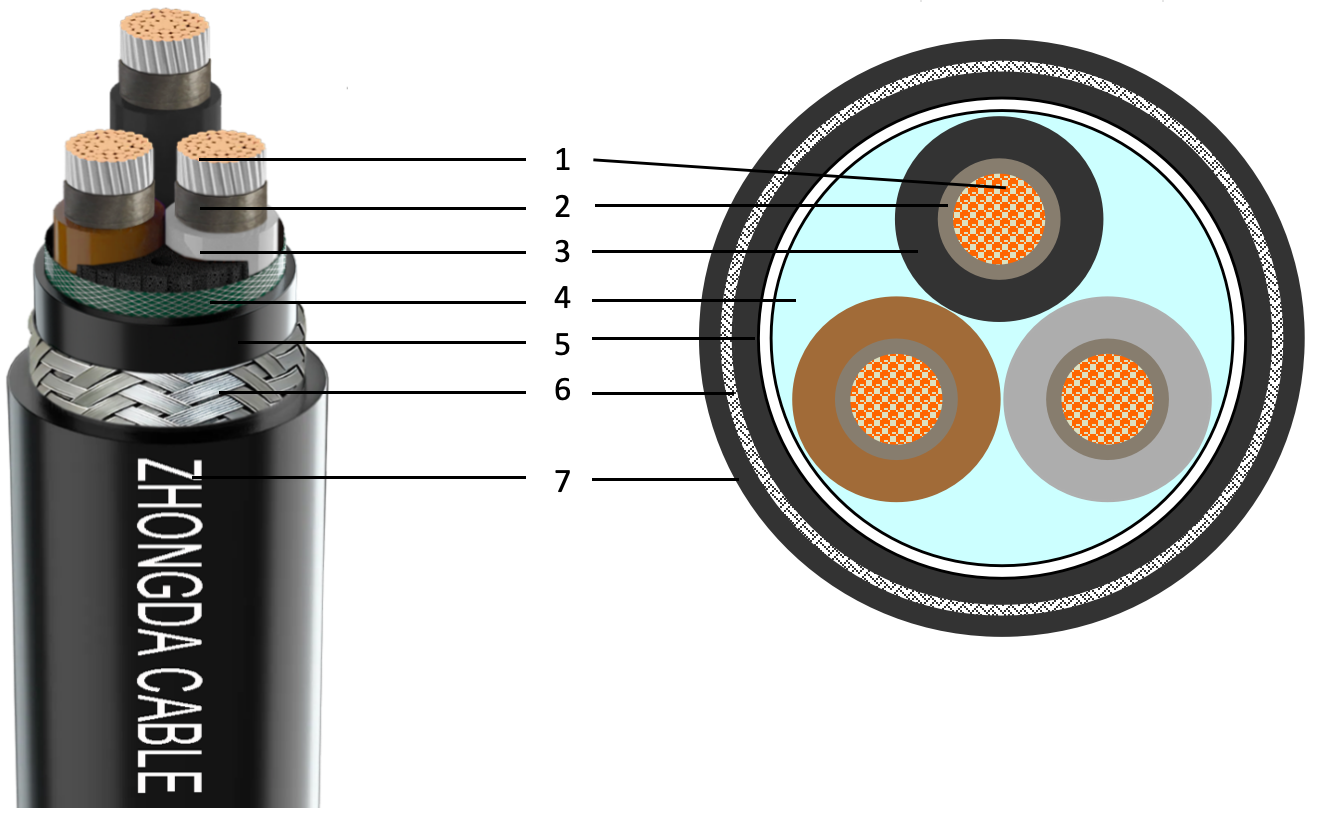

Construction
| Components | Code Letter | Material or requirements | |||||
| Series code | C | Marine low voltage cable | |||||
| Conductor (1) | - | Stranded copper wire | |||||
| Fire resistant tape (2) | - | Mica/glass tape | |||||
| Insulation (3) | J | Cross-linked polyethylene (XLPE) | |||||
| Filler and tape (4) | - | Non-hygroscopic material (if any) | |||||
| Inner sheath (5) | V | Polyvinyl chloride (PVC) | |||||
| PF | Thermoplastic polyolefin (SH1) | ||||||
| PJ | Thermoset polyolefin (SH2) | ||||||
| Armor (6) | 8 | Tinned copper wire braided | |||||
| 9 | Galvanized steel wire braided | ||||||
| Outer sheath (7) | 2 | Polyvinyl chloride (PVC) | |||||
| 5 | Thermoset polyolefin (SH2) | ||||||
| 6 | Thermoplastic polyolefin (SH1) | ||||||
| Fire resistance | N | Fire resistance IEC 60331 | |||||
| Flame retardant | S | Flame retardant for bunched wires or cables | |||||
| Low smoke and halogen free | A | Smoke, halogen and toxicity | |||||
| 1C | Low smoke, halogen free and low toxicity | ||||||
Standards applied
Construction：IEC 60092-350, 353
Conductor：IEC 60228 Class 2, Class 5
Insulation & Sheath：IEC 60092-360
Flame Retardant：IEC 60332-1
Flame Retardant：IEC 60332-3-22 Cat.A
1 Smoke Density：IEC 61034
1 Halogen Index：IEC 60754
1 Fluorine Content：IEC 60684-2
*UV Resistance：UL1581-2011
*Cold Resistance：IEC 60811-1-4
Cores identification
1 core: Black
2 cores: Brown, Blue
3 cores: Black, Brown, Grey
4 cores: Black, Brown, Grey, Blue
5 cores and more: Print black number on white core ……
Earth core: Yellow/Green
Outer sheath color
Black
Main characteristics：
Operating temperature：-15℃(1*-60℃)～+90℃
Test voltage：3.5kV/5min(0.6/1kV), 6.5kV(1.8/3kV)/5min
1Smoke density of completed cable：≥60%
Application
The cable is mainly intended for the power, lighting and control system of shipboard and offshore buildings as well as industrial and mining enterprises of metallurgy, chemistry, electrical power, etc.
1 Standards only available for polyolefin sheath
* Standards or performance provided upon request
| Type | Description | ||||||
| CJV/NSA | XLPE insulated fire-resistant marine low voltage cable with PVC sheath | ||||||
| CJPF/NSC | XLPE insulated low-smoke, halogen-free and fire-resistant marine low voltage cable with polyolefin sheath (SHF1) | ||||||
| CJPJ/NSC | XLPE insulated low-smoke, halogen-free and fire-resistant marine shipboard low voltage cable with cross-linked polyolefin sheath (SHF2) | ||||||
| CJ82/NSA | XLPE insulated fire-resistant marine shipboard low voltage cable with copper wire braiding and PVC outer sheath | ||||||
| CJ85/NSC | XLPE insulated low-smoke, halogen-free and fire-resistant marine low voltage cable with copper wire braiding and cross-linked polyolefin outer sheath (SHF2) | ||||||
| CJ86/NSC | XLPE insulated low-smoke, halogen-free and fire-resistant marine low voltage cable with copper wire braiding and polyolefin outer sheath (SHF1) | ||||||
| CJV82/NSA | XLPE insulated fire-resistant marine low voltage cable with PVC inner sheath, copper wire braiding and PVC outer sheath | ||||||
| CJV92/NSA | XLPE insulated fire-resistant marine low voltage cable with PVC inner sheath, galvanized steel wire braiding and PVC outer sheath | ||||||
| CJPJ85/NSC | XLPE insulated low-smoke, halogen-free and fire-resistant marine low voltage cable with cross-linked polyolefin inner sheath (SHF2), copper wire braiding and cross-linked polyolefin outer sheath (SHF2) | ||||||
| CJPJ95/NSC | XLPE insulated low-smoke, halogen-free and fire-resistant marine low voltage cable with cross-linked polyolefin inner sheath (SHF2), galvanized steel wire braiding and cross-linked polyolefin outer sheath (SHF2) | ||||||
| CJPF86/NSC | XLPE insulated low-smoke, halogen-free and fire-resistant marine low voltage cable with polyolefin inner sheath (SHF1), copper wire braiding and polyolefin outer sheath (SHF1) | ||||||
| CJPF96/NSC | XLPE insulated low-smoke, halogen-free and fire-resistant marine low voltage cable with polyolefin inner sheath (SHF1), galvanized steel wire braiding and polyolefin outer sheath (SHF1) | ||||||
| Size | |||||||||
| Single-Core | Two-Core | Three-Core (2+E incl) | Four-Core (3+E incl) | Five-Core (4+E & 3+2E incl) | Six-Core and Above | ||||
| 1x1 | 2x1 | 3x1 | 4x1 | 5x1 | 6x1 | 6x1.5 | 6x2.5 | 6x4 | |
| 1x1.5 | 2x1.5 | 3x1.5 | 4x1.5 | 5x1.5 | 7x1 | 7x1.5 | 7x2.5 | 7x4 | |
| 1x2.5 | 2x2.5 | 3x2.5 | 4x2.5 | 5x2.5 | 10x1 | 10x1.5 | 10x2.5 | 10x4 | |
| 1x4 | 2x4 | 3x4 | 4x4 | 5x4 | 12x1 | 12x1.5 | 12x2.5 | 12x4 | |
| 1x6 | 2x6 | 3x6 | 4x6 | 5x6 | 14x1 | 14x1.5 | 14x2.5 | 14x4 | |
| 1x10 | 2x10 | 3x10 | 4x10 | 5x10 | 16x1 | 16x1.5 | 16x2.5 | 16x4 | |
| 1x16 | 2x16 | 3x16 | 4x16 | 5x16 | 19x1 | 19x1.5 | 19x2.5 | 19x4 | |
| 1x25 | 2x25 | 3x25 | 4x25 | 5x25 | 24x1 | 24x1.5 | 24x2.5 | 24x4 | |
| 1x35 | 2x35 | 3x35 | 4x35 | 5x35 | 27x1 | 27x1.5 | 27x2.5 | 27x4 | |
| 1x50 | 2x50 | 3x50 | 4x50 | 5x50 | 30x1 | 30x1.5 | 30x2.5 | 30x4 | |
| 1x70 | 2x70 | 3x70 | 4x70 | 5x70 | 33x1 | 33x1.5 | 33x2.5 | 33x4 | |
| 1x95 | 2x95 | 3x95 | 4x95 | 5x95 | 37x1 | 37x1.5 | 37x2.5 | 37x4 | |
| 1x120 | 2x120 | 3x120 | 4x120 | 5x120 | |||||
| 1x150 | 2x150 | 3x150 | 4x150 | 5x150 | |||||
| 1x185 | 2x185 | 3x185 | 4x185 | 5x185 | |||||
| 1x240 | 2x240 | 3x240 | |||||||
| 1x300 | |||||||||
