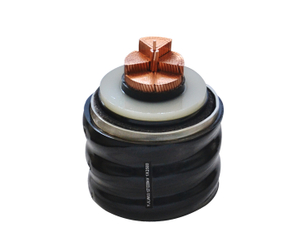

35kV AND BELOW XLPE INSULATED SHIELDED FLAME-RETARDANT HIGH VOLTAGE CABLE

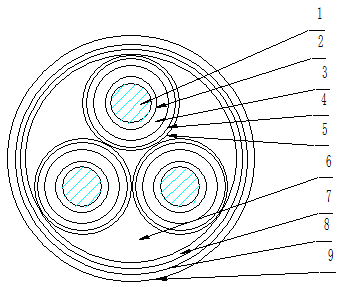

1.Structure Diagram
2. Construction Description
Composition | Designation | Materials |
1- Conductor | T | Stranded copper wire |
L | Stranded aluminium wire | |
2- Conductor Screen | - | Semi-conductive shielding material |
3- Insulation | YJ | Cross-linked polyethylene (XLPE) |
4- Insulation Screen | - | Strippable Semi-conductive shielding material |
5- Metallic Shield | - | Flexible copper tape (T2M) |
6- Filler & Tape | - | Non-hygroscopic material |
7- Inner Sheath | V | Polyvinyl chloride (PVC) |
Y | Polyolefin | |
8- Armor | 2 | Galvanized steel strip |
3 | Galvanized fine steel wire | |
4 | Galvanized thick steel wire | |
9- Outer Sheath | 2 | Polyvinyl chloride (PVC) |
3 | Polyolefin | |
Low Smoke & Halogen-free | WD | Low Smoke & Halogen-free |
Flammability | ZA | Grade A of flame-retardant |
ZB | Grade B of flame-retardant | |
ZC | Grade C of flame-retardant | |
ZR | Grade D of flame-retardant |
3. Standard Applied
GB/T 12076.2-2020 GB/T 12076.3-2020
4. Main Characteristics
The max. rated temperature of cable conductor is 90℃, and the max. temperature of cable conductor is no more than 250℃ when short circuit less than 5 seconds.
5. Installation Recommendation
1) When cable installation, the ambient temperature should not be lower than 0℃, or, to be preheated.
2) Bending radius: 20D for unarmored single-core while 15D for armored. 15D for unarmored multi-cores while 12D for armored.
6. Application
The cables are applied in transmission and distribution in high voltage power lines with rated voltage from 3 to 35kV.
7. Specification Description:
Specification | Description | Application | |
Cu-core | Al-core | ||
WDZ-YJY | WDZ-YJLY | XLPE insulated Polyolefin sheathed high voltage cable | To be laid in indoor, cable trench and pipeline under certain traction. When magnetic pipeline, single-core prohibited. |
ZR-YJV | YJLV | XLPE insulated PVC sheathed high voltage cable | |
WDZ-YJY23 | WDZ-YJLY23 | XLPE insulated Steel-strip armored Polyolefin sheathed high voltage cable | To be laid in indoor, cable trench, pipeline and buried-pipe laying withstanding radial mechanical external force and certain traction. |
ZR-YJV23 | YJLV23 | XLPE insulated Steel-strip armored PVC sheathed high voltage cable | |
ZR-YJV32 | YJLV32 | XLPE insulated fine steel wire armored PVC sheathed high voltage cable | To be laid in water or somewhere with high drop withstanding mechanical external force and considerable traction. |
ZR-YJV33 | YJLV33 | XLPE insulated fine steel wire armored PE sheathed high voltage cable | |
ZR-YJV42 | YJLV42 | XLPE insulated thick steel wire armored PVC sheathed high voltage cable | To be laid in water or somewhere with high drop withstanding mechanical external force and greater traction. |
ZR-YJV43 | YJLV43 | XLPE insulated thick steel wire armored PE sheathed high voltage cable | |
8. Size
Specification | Core | Rated Voltage (kV) | |||||||
3.6/6 (7.2) | 6/6 (10) | 8.7/10 (15) | 12/20 (24) | 18/20 (30) | 21/35~26/35 | ||||
Cross-section (mm2) | |||||||||
YJV | YJLV | 1 | 10~630 | 16~630 | 35~630 | 35~630 | 50~630 | 50~630 | |
YJY | YJLY | 10~630 | 16~630 | 35~630 | 35~630 | 50~630 | 50~630 | ||
YJV32 | YJV32 | 10~630 | 16~630 | 35~630 | 35~630 | 50~630 | 50~630 | ||
YJV33 | YJLV33 | 10~630 | 16~630 | 35~630 | 35~630 | 50~630 | 50~630 | ||
YJV42 | YJLV42 | 10~630 | 16~630 | 35~630 | 35~630 | 50~630 | 50~630 | ||
YJV43 | YJLV43 | 10~630 | 16~630 | 35~630 | 35~630 | 50~630 | 50~630 | ||
YJV | YJLV | 3 | 10~630 | 16~630 | 35~630 | 35~630 | 50~630 | 50~630 | |
YJY | YJLY | 10~630 | 16~630 | 35~630 | 35~630 | 50~630 | 50~630 | ||
YJV22 | YJLV22 | 10~630 | 16~630 | 35~630 | 35~630 | 50~630 | 50~630 | ||
YJV23 | YJLV23 | 10~630 | 16~630 | 35~630 | 35~630 | 50~630 | 50~630 | ||
YJV32 | YJLV32 | 10~630 | 16~630 | 35~630 | 35~630 | 50~630 | 50~630 | ||
YJV33 | YJLV33 | 10~630 | 16~630 | 35~630 | 35~630 | 50~630 | 50~630 | ||
YJV42 | YJLV42 | 10~630 | 16~630 | 35~630 | 35~630 | 50~630 | 50~630 | ||
YJV43 | YJLV43 | 10~630 | 16~630 | 35~630 | 35~630 | 50~630 | 50~630 | ||
Mark: All above specifications can be made to halogen-free (WD type), and can be customized upon request.
