Undersized cables introduce severe operational and safety risks to any electrical system. They cause immediate thermal failures, degrade expensive equipment through severe voltage drops, and violate local electrical codes instantly. Facility managers and electrical engineers must move beyond basic amperage charts. Accurate Cable Size Calculation requires a rigorous, field-tested approach. You must account for continuous loads, environmental derating factors, and mechanical stresses at termination points that standard online calculators often ignore. We present a comprehensive, standards-based framework below. Executing this methodology ensures maximum electrical efficiency and guarantees long-term mechanical reliability across complex commercial and industrial applications. Relying on guesswork or incomplete data leads to catastrophic equipment failure and massive liability.

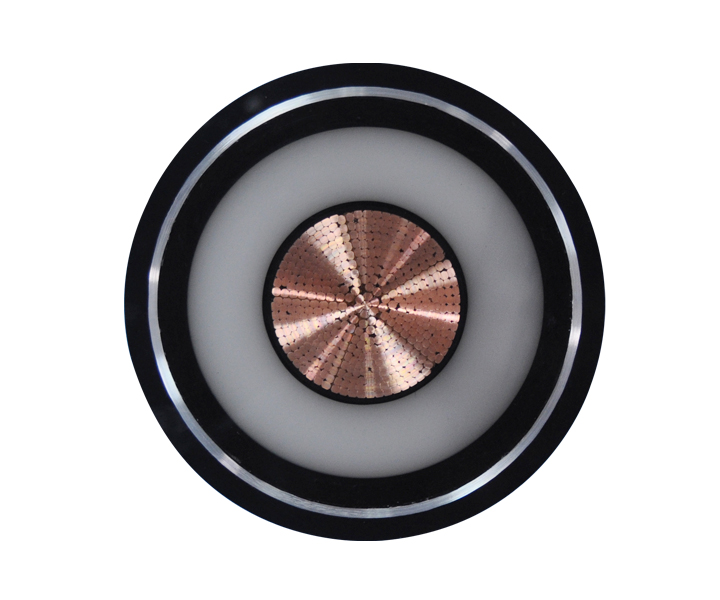

You must complete a critical pre-calculation phase before looking at any ampacity charts. Measure facility or room dimensions accurately and map the exact placements of machinery and distribution panels. This determines precise cable run lengths. Field routing rarely follows a straight line. You have to account for elevation changes, routing around HVAC ducts, and navigating structural beams.
This segregation allows you to assess continuous versus non-continuous load profiles accurately. Mixing load types in a single conduit complicates derating calculations and often forces you to upsize all conductors unnecessarily.
The foundational formula for current is straightforward: I = P / V. Current equals power divided by voltage. You must use actual equipment nameplate ratings. Do not rely on theoretical estimates or generic equipment cut sheets. A 50 HP motor from one manufacturer might draw a different full-load amperage (FLA) than a 50 HP motor from another.
| Load Classification | Definition | Sizing Requirement |
|---|---|---|
| Continuous Load | Operates for 3 hours or more at maximum current. | Size conductors at 125% of the continuous load rating. |
| Non-Continuous Load | Operates for less than 3 hours intermittently. | Size conductors at 100% of the non-continuous load rating. |
| Mixed Load | Combination of continuous and non-continuous on one feeder. | 125% of continuous + 100% of non-continuous. |
Differentiating between continuous and non-continuous loads prevents thermal degradation of the insulation over time. Standard codes strictly enforce the 125% rule for continuous loads to provide a necessary thermal buffer.
Single-phase AC systems require specific calculation adjustments. You must incorporate the Power Factor (PF), which represents the ratio of working power to apparent power. The formula is I = P / (V × PF). Ignoring power factor in industrial settings leads to severely undersized cables because inductive loads like motors and transformers draw more current than their raw wattage suggests.
Three-phase AC systems use a different formula: I = P / (√3 × V × PF). The square root of 3 (approximately 1.732) accounts for the phase shift in the power delivery. This calculation significantly reduces the required conductor cross-sectional area compared to single-phase systems delivering the same power. It proves highly efficient for high-power industrial equipment, reducing copper costs and conduit sizes.
DC wire cross-sectional area uses a standard formula: A = (2 × D × I × ρ) / V. Here, D represents the one-way distance, I stands for current, and the symbol ρ denotes the specific material resistivity of the conductor. DC calculations remain common in solar arrays, battery storage banks, and transit systems.
Contrast these with AC calculations. DC systems lack skin effect, where alternating current tends to flow on the outer surface of the conductor, increasing effective resistance. They also operate without power factor considerations. However, voltage drop in low-voltage DC systems (like 12V, 24V, or 48V battery banks) is highly sensitive to distance. Even a slight resistance increase over a long run will drop the voltage below the operating threshold of the connected equipment.
Ampacity defines the maximum continuous current a conductor carries without exceeding its temperature rating. Insulation types dictate these maximum operating temperatures. Pushing a cable past its thermal limit degrades the insulation rapidly, leading to brittle cracking and eventual ground faults or short circuits.
| Insulation Type | Maximum Operating Temperature | Common Application Environments |
|---|---|---|
| TW, UF | 60°C (140°F) | Older residential, basic underground feeders. |
| THWN, XHHW, USE | 75°C (167°F) | Standard commercial and industrial wet/dry locations. |
| THHN, XHHW-2, XLPE | 90°C (194°F) | High-heat industrial, heavy commercial feeders. |
Cross-reference your calculated amperage with standard charts like NEC Table 310.16 or IEC 60364-5-52. Always check the temperature rating of the termination lugs. If you use 90°C wire but terminate it on a 75°C rated breaker lug, you must size the wire based on the 75°C ampacity column. The weakest thermal link dictates the entire circuit's capacity.
Industry standards establish strict voltage drop thresholds to ensure equipment functions correctly. Branch circuits allow a maximum 3% voltage drop. Combined feeder and branch circuits allow up to 5%. Excessive voltage drop causes motors to run hot, draw more current, and burn out prematurely. It also causes lighting to flicker and sensitive electronics to reset.
Long cable runs often dictate sizing up the conductor strictly to mitigate voltage drop, even if a smaller cable meets the baseline ampacity requirements. You might need a 4/0 cable for a 100-amp load if the run is 500 feet long.
You must verify short-circuit thermal withstand capabilities. The chosen cable size must handle the massive thermal stress generated during a fault condition. It must survive the milliseconds before the overcurrent protection device (breaker or fuse) clears the fault. If the wire is too small, it acts as a fuse and vaporizes.
Use the adiabatic equation: I²t = k²S². This formula validates the minimum cross-sectional area (S) against the fault current (I) and the duration of the fault (t). The constant (k) depends on the conductor material and insulation type. Industrial facilities with massive transformers have high available fault currents, often requiring larger conductors than the continuous load dictates just to survive a potential short circuit.
Baseline ampacity charts usually assume a 30°C (86°F) ambient temperature. High-heat environments demand immediate adjustments. Boiler rooms, direct sunlight exposures, and roof installations run significantly hotter. You must apply temperature correction factors to reduce the allowable ampacity of the cable safely.
| Ambient Temperature (°C) | Correction Factor (90°C Wire) | Correction Factor (75°C Wire) |
|---|---|---|
| 31 - 35 | 0.96 | 0.94 |
| 36 - 40 | 0.91 | 0.88 |
| 41 - 45 | 0.87 | 0.82 |
| 46 - 50 | 0.82 | 0.75 |
If you route a 100-amp rated cable through an attic that reaches 45°C, its actual safe carrying capacity drops. Using 90°C wire, the capacity becomes 87 amps. You must upsize the wire to restore the required 100-amp capacity.
Bundling multiple current-carrying conductors creates a severe thermal impact. They generate mutual heating inside a single raceway, conduit, or cable tray. The heat cannot dissipate into the surrounding air. Apply NEC or IEC adjustment factors strictly to prevent insulation meltdown.
| Number of Current-Carrying Conductors | Ampacity Adjustment Factor |
|---|---|
| 1 to 3 | 100% (No derating required) |
| 4 to 6 | 80% |
| 7 to 9 | 70% |
| 10 to 20 | 50% |
Ground wires and neutral wires carrying only unbalanced currents generally do not count as current-carrying conductors for this specific derating table. However, harmonic currents in neutral wires from non-linear loads (like VFDs or LED lighting) require you to count the neutral, triggering heavier derating penalties.
Always add a 10 to 15% length margin to your calculations. This accounts for routing inefficiencies, vertical drops, and the necessary slack for making up connections inside panels. Pulling wire tight like a guitar string damages the insulation and puts extreme stress on the termination lugs.

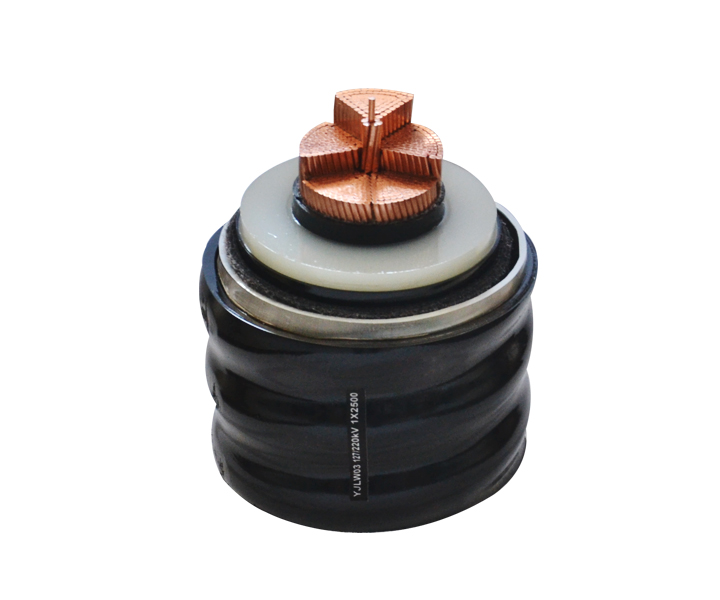

Minimum bend radius constraints depend on the cable diameter and insulation type. Shielded medium-voltage cables require massive sweeping bends. Forcing a thick cable around a tight 90-degree corner crushes the insulation and alters the concentricity of the conductor. Tight corners may dictate upgrading to a more flexible cable class with finer stranding, rather than just choosing a larger gauge.
A perfectly calculated cable will still fail under physical duress. Excessive tension, heavy vibration, or constant flexing destroys termination points. Mechanical stress alters the cross-sectional integrity of the conductor at the lug. This physical deformation reduces the contact area, increasing localized resistance. Increased resistance causes dangerous thermal hotspots that eventually melt the terminal block or start a fire.
Heavy cables hanging vertically in a shaft exert massive gravitational pull on their top terminations. Without support, the copper strands stretch, reducing their diameter and increasing resistance. Equipment mounted on vibration isolators, like large compressors or generators, will snap rigid connections over time through metal fatigue.
You must specify proper Power Cable Strain Relief to preserve the electrical characteristics of your installation. These devices transfer the mechanical load away from the fragile electrical connection points and onto the robust outer jacket of the cable or the equipment enclosure.
| Strain Relief Type | Best Application Environment | Primary Mechanical Benefit |
|---|---|---|
| Standard Cord Grips | Static machinery connections, junction boxes | Basic pull-out resistance and environmental sealing against dust/water. |
| Wire Mesh Grips (Kellems) | Suspended drops, vertical shaft runs | Distributes tension over a large cable surface area, preventing jacket tearing. |
| Armored Cable Glands | Heavy industrial, hazardous classified areas | Secures the heavy armor layer while protecting inner conductors from crushing. |
Evaluate different strain relief solutions carefully based on the operating environment. High-vibration motor connections require different grips than suspended pendant drops. Match the strain relief device to the specific outer diameter (OD) of the cable. Ensure it supports the total hanging weight of the finalized cable run. An undersized grip will choke the cable, while an oversized grip provides zero pull-out protection.
Manual calculation and chart lookups suit simple, straightforward scenarios. Standard commercial branch circuits, lighting feeds, and basic receptacle wiring fall into this category. Short runs with predictable ambient conditions and minimal conduit fill allow manual methods. A competent electrician can size a 20-amp 120V circuit using standard tables in seconds.
However, manual calculations show severe limitations for complex layouts. Multi-variable industrial environments with extreme temperatures, long runs, heavy motor loads, and massive fault currents require more robust approaches. Attempting to manually calculate the cascading derating factors for a 4000-amp switchgear feed with parallel conductors invites dangerous mathematical errors.
Online calculators and enterprise engineering software offer immense utility for complex projects. Programs like ETAP and SKM represent industry standards for electrical power system analysis. Look for specific features when evaluating a robust calculator.
Step-by-step worked examples generated by the software allow engineers to verify the underlying math transparently. Black-box calculators that spit out a wire size without showing the formulas used are dangerous and unacceptable for industrial design.
Establish a strict protocol for cross-checking automated outputs. Compare the software's final wire size against a quick manual baseline estimate. If the software suggests a 500 MCM cable for a load you manually estimated at 4/0, investigate the discrepancy immediately. This catches dangerous input errors early, such as entering a run length in meters instead of feet.
Always have a licensed Professional Engineer (PE) review final calculations for major feeder lines and critical infrastructure. Certified designers must verify the math for liability and compliance purposes. Software is a tool to speed up the process, not a replacement for engineering judgment and field experience.
A: The NEC requires sizing continuous loads and motor conductors at 125% of their rated full-load current. This safety margin prevents the conductors and termination lugs from overheating during extended periods of continuous operation, ensuring long-term insulation integrity.
A: Long distances increase the total electrical resistance of the run. You must often select a larger wire gauge to counteract this resistance and maintain the voltage within the acceptable 3-5% threshold, ensuring equipment operates efficiently without burning out.
A: Derating adjusts the cable's maximum safe current capacity downward. You must apply these factors to account for high ambient temperatures or the mutual heating caused by bundling multiple wires together in a single conduit, preventing thermal breakdown.
A: While the base formulas remain similar, aluminum possesses higher electrical resistivity than copper. You must specify a larger cross-sectional area for an aluminum cable to carry the exact same current safely and maintain acceptable voltage drop levels.
A: Use the specific DC formula: A = (2 × D × I × ρ) / V. This calculation relies on the one-way distance, current, and material resistivity. It completely ignores AC power factor and skin effect considerations, focusing heavily on voltage drop over distance.
A: Undersized cables trigger cascading system failures. They cause excessive voltage drop, insulation melting, and significantly increased fire risks. This ultimately leads to premature equipment failure, severe safety hazards, and immediate code violations.
