The majority of electrical network failures do not occur within the main run of the cable. They happen at the connection points. Improper cable connections introduce severe failure risks, ranging from localized overheating to catastrophic flashovers. Engineers face the continuous challenge of selecting the correct connection method to manage electrical stress, prevent moisture ingress, and maintain system reliability across varying voltage classes and harsh environmental conditions.

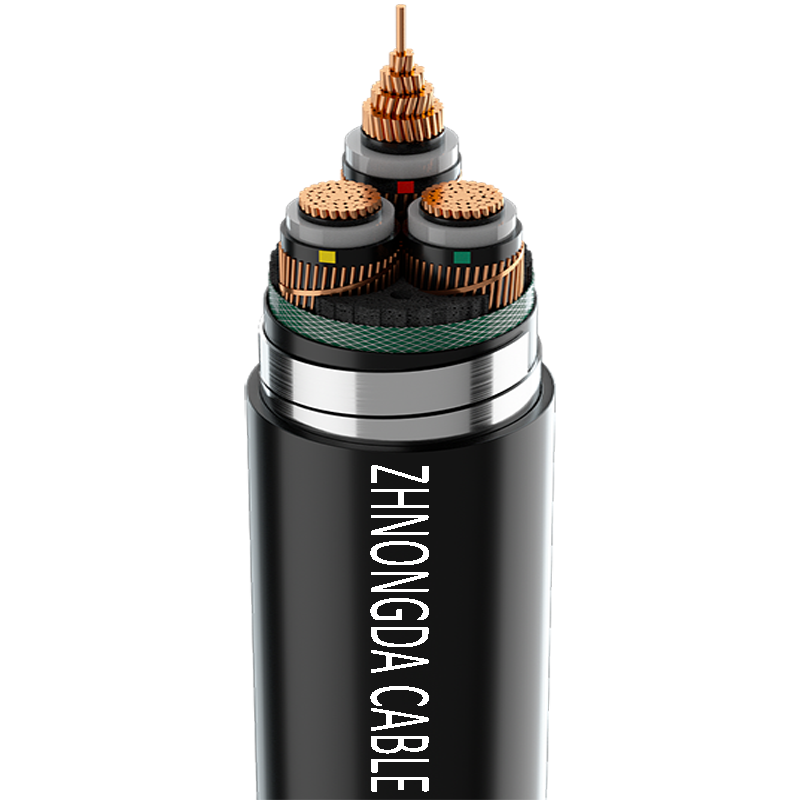

It is important to distinguish between a Power Cable Termination and a cable joint or splice. A termination connects a cable end directly to equipment, switchgear, or a busbar. A joint connects two separate cables together. This guide focuses strictly on terminations.
The following sections provide a rigorous, vendor-neutral framework for evaluating termination technologies. You will learn how to compare installation methods, match components to environmental constraints, and mitigate long-term operational risks in electrical networks.

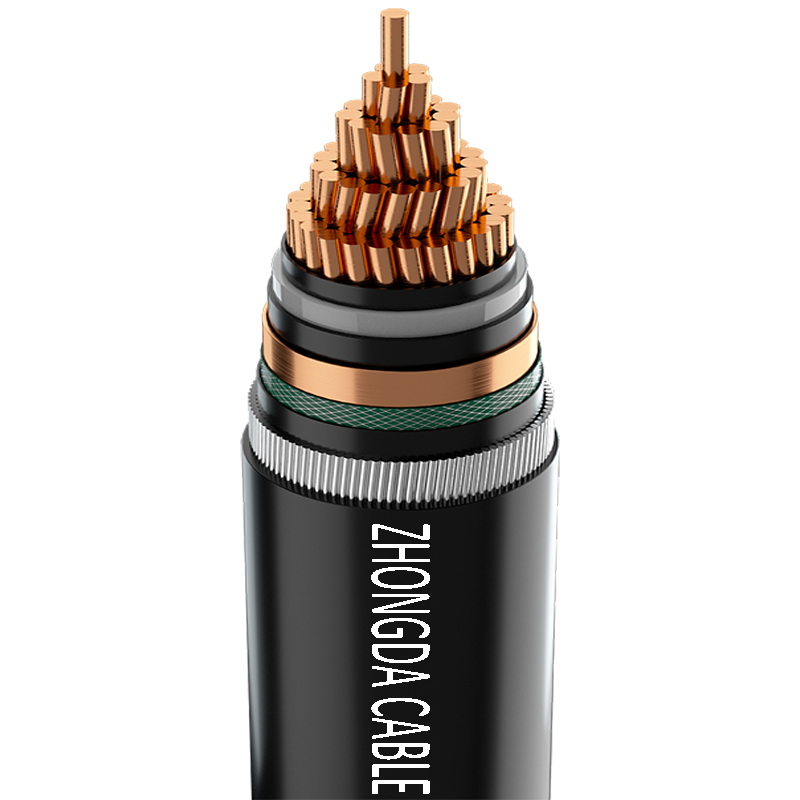

When you strip back a cable's insulation shield to expose the conductor, you fundamentally alter the electrical field. The equipotential lines, which normally run parallel to the conductor, suddenly bunch up and concentrate heavily at the cutback point. This concentrated stress easily exceeds the dielectric strength of the surrounding air and insulation materials. If left unmanaged, this high-stress zone will initiate partial discharge, leading to carbon tracking and eventual catastrophic flashover.
Terminations use specific mechanisms to grade and distribute this stress. Stress cones physically extend the shield profile to manage field geometry, pushing the equipotential lines outward. High-permittivity (High-K) materials and mastic layers refract the electrical field lines, spreading the stress over a larger surface area.
| Stress Control Method | Mechanism of Action | Typical Application |
|---|---|---|
| Geometric (Stress Cone) | Physically extends the shield profile to flare equipotential lines outward. | High voltage (69kV+), pre-molded terminations. |
| Capacitive (High-K Mastic) | Uses high-permittivity materials to refract and distribute electrical field lines. | Medium voltage (15kV-35kV), cold and heat shrink. |
| Resistive Grading | Employs non-linear resistive materials to control voltage distribution. | Specific medium voltage applications, DC cables. |
Moisture, dust, and chemical ingress rapidly degrade dielectric integrity. Terminations must provide a robust, long-lasting seal against these elements. Water entering the cable core causes water treeing—microscopic branching structures that permanently weaken the insulation and eventually lead to electrical failure.
Outdoor and high-pollution environments require additional protection. Anti-tracking tubes prevent surface leakage currents from forming across the termination body. Weather sheds (or skirts) increase the creepage distance. This prevents continuous conductive paths from forming during heavy rain, salt spray, or severe industrial contamination.
Common environmental threats include:
The termination hardware must handle the full electrical load without excessive heating. Hardware sizing and contact resistance directly impact the thermal performance of the circuit. High contact resistance generates localized heat, which degrades the surrounding insulation and can cause the connection to fail mechanically.
You must ensure the termination does not become a thermal bottleneck. The connection components must support the full Power Cable Ampacity. Proper lug selection, correct preparation of the conductor strands, and accurate torque application keep operating temperatures within safe limits. If the termination runs hotter than the cable itself, you have a flawed connection.
Properly routing and terminating the ground end of the cable shield is mandatory. The metallic screen carries capacitive charging currents during normal operation. It also provides a critical path for fault currents during a short circuit, directing massive energy safely to the ground grid.
Secure earthing paths protect personnel from dangerous touch voltages. Installers must ensure the ground connection remains intact and properly sized to handle maximum potential fault currents without melting or detaching. A compromised ground connection turns the entire cable shield into a lethal hazard.
Crimping uses hydraulic or mechanical tools to permanently deform a metallic lug onto the conductor strands. This method provides high reliability and low contact resistance when executed perfectly. The compression forces the individual strands together, breaking surface oxides and creating a cold-weld effect.
However, crimping requires exact die-to-lug matching. It is highly susceptible to under-crimping or over-crimping by inexperienced installers. Poor crimps create air gaps, leading to oxidation, increased resistance, and eventual thermal failure.
To execute a proper compression termination, field technicians must follow these steps:
Mechanical terminations utilize bolts that snap off at a pre-engineered torque threshold. This secures the conductor inside the lug housing with a precise, repeatable clamping force.
This method eliminates the need for specialized crimping tools and heavy hydraulic presses. Shear-bolt connectors accommodate a wider range of conductor sizes within a single lug, reducing inventory complexity. They are highly repeatable and significantly reduce installer error during field assembly. The internal threads of the lug often feature friction ridges that break through conductor oxides as the bolts tighten.
Soldering and exothermic welding fuse the connection using molten metal. This provides exceptional conductive bonds and permanent physical connections that are highly resistant to vibration and thermal cycling.
Today, this method is largely relegated to highly specific, legacy, or low-voltage applications. It presents severe safety hazards, lacks mechanical flexibility, and requires high skill levels to execute correctly. Exothermic welding is still common for grounding grid connections, but rarely used for the primary phase conductors in modern medium or high voltage terminations.
Low voltage power and network crossovers utilize standardized male ends, ring terminals, and mechanical lugs. These connections operate below the threshold where electrical stress control is necessary (typically under 1000V).
Installation focuses on strict adherence to wiring standards, proper phase color-coding, and ensuring physical security. Tight mechanical connections prevent loosening from operational vibrations. Heat shrink tubing is often applied over the lug barrel to provide basic environmental sealing and prevent accidental short circuits between closely spaced phases.
Cold shrink components come pre-expanded on a removable plastic core. When the installer positions the termination and pulls the core, the rubber shrinks tightly onto the cable. This provides constant, active radial pressure over the cable's lifespan, expanding and contracting with the cable during thermal cycling.
This technology offers faster installation and requires no hot work permits, making it ideal for hazardous environments like petrochemical plants. It provides an excellent response to thermal cycling. The primary drawback is a higher upfront material cost compared to heat shrink alternatives.
| Feature | Cold Shrink | Heat Shrink |
|---|---|---|
| Installation Speed | Fast (pull core) | Slower (requires heating) |
| Hot Work Permit | Not Required | Required |
| Thermal Cycling | Active radial pressure | Rigid, can loosen over time |
| Material Cost | Higher | Lower |
| Installer Skill Level | Moderate | High (heat control) |
Heat shrink relies on cross-linked polyolefin tubing. The material shrinks tightly around the cable when exposed to a heat source, such as a propane torch or heavy-duty heat gun. The tubing is often lined with a hot-melt adhesive that flows during heating to create a moisture barrier.
These terminations are highly durable and offer excellent environmental protection at a lower initial cost. However, they require hot work permits. Success relies heavily on the installer's skill to apply even heat, avoid scorching the materials, and ensure the adhesive flows properly without leaving voids.
Pre-molded terminations consist of factory-tested EPDM or silicone rubber components. Installers push these molded shapes onto the prepared cable end. They integrate the stress cone and weather sheds into a single, robust unit.
They provide highly reliable, factory-controlled stress relief. The installation requires precise cable preparation. Installers often need significant physical force or specialized tools to slide the tight-fitting components into place. Lubricants are heavily utilized to facilitate the slip-on process, but the cable dimensions must match the molded component exactly.
Separable connectors are fully insulated, submersible terminations. They are used primarily in compact switchgear and transformers, such as 11kV T-boots or 200A load-break elbows. They feature a thick EPDM rubber housing with a conductive outer shield that maintains ground continuity.
These components allow for dead-break or load-break disconnection. They provide modularity and safety in tight spaces. Installation requires precise alignment and specialized training to ensure the interfaces mate perfectly. The capacitive test points integrated into many separable connectors allow operators to verify the circuit is de-energized before maintenance.
Voltage class dictates the fundamental technology required. Low voltage applications require simple physical connections and environmental sealing. Medium and high voltage applications mandate active stress control and tracking resistance to prevent dielectric breakdown. You cannot use low voltage techniques on a 15kV system; the electrical field will destroy the connection within hours.
You must evaluate indoor versus outdoor requirements. Indoor installations face different humidity and clearance challenges than outdoor setups exposed to rain and UV light. Assess spatial limitations inside switchgear or termination boxes. Match the cable core with the correct position to avoid severe bending radii that damage the insulation.
Consider these spatial factors:
Connecting copper to aluminum creates severe galvanic corrosion risks. Moisture acts as an electrolyte, rapidly degrading the aluminum component. You must specify bi-metallic lugs and apply oxide-inhibiting compounds to ensure long-term connection stability. A standard copper lug installed on an aluminum conductor will fail prematurely, leading to high resistance and thermal runaway.
Microscopic air pockets left during installation lead to partial discharge. The electrical field ionizes the air inside the void, slowly eating away at the surrounding insulation until a complete dielectric failure occurs. This process can take months or years, making it a hidden danger.
Mitigate this risk through strict adherence to cutback dimensions. Properly apply void-filling mastics around the shield cutback and lug barrel to eliminate all trapped air. Ensure the mastic is stretched and wrapped tightly to force out any air bubbles before applying the outer shrink layers.
Over 80% of termination failures result from poor cable preparation. Scoring the primary insulation while removing the semiconductive layer creates an immediate path for electrical tracking. Even a microscopic scratch can concentrate the electrical field and initiate failure.
Proper cable laying prevents mechanical strain on the termination. Installers must follow manufacturer instructions exactly. Using proper stripping tools instead of standard knives drastically reduces the risk of insulation damage.
Common workmanship errors include:
A: A termination connects the end of a cable to equipment, such as a transformer or switchgear. A splice, or joint, connects two separate cable ends together to extend the overall run.
A: Removing the insulation shield concentrates the electrical field at the cutback point. Stress cones manage and distribute this electrical stress to prevent partial discharge and insulation breakdown.
A: No. Direct contact between copper and aluminum causes galvanic corrosion. You must use specialized bi-metallic lugs and oxide-inhibiting compounds to connect these dissimilar metals safely.
A: Partial discharge is usually caused by microscopic air voids trapped inside the termination during installation. The electrical field ionizes the air, which slowly degrades the surrounding dielectric material.
A: Cold shrink offers faster installation, requires no hot work permits, and provides active radial pressure during thermal cycling. Heat shrink is often more durable against physical impact but relies heavily on installer skill.
A: Poor crimping creates air gaps and high contact resistance. This leads to localized overheating, which degrades the insulation and eventually causes the connection to fail under load.
