Marine and offshore environments present extreme isolation challenges. When a thermal event breaks out at sea, crew members cannot simply evacuate the premises, and external emergency services are entirely unavailable. You must rely on onboard systems to suppress the hazard, maintain vessel control, and keep communication lines open. Standard electrical infrastructure quickly becomes a severe liability during these events. High temperatures melt standard insulation within minutes, causing immediate short circuits. Loss of power to critical systems transforms a manageable incident into a catastrophic failure. Without power to fire pumps, emergency lighting, and propulsion, a vessel is completely defenseless.
You need a foundational safeguard to maintain operational continuity. Specifying the correct fire resistant marine cable provides this exact protection, keeping life-safety systems active when they are needed most. This technical evaluation guides engineers, naval architects, and procurement teams in selecting the right cabling for harsh maritime and offshore environments.
Survival Over Suppression: Fire-resistant marine cable is engineered specifically to maintain circuit integrity for a defined duration (often 90-180 minutes) under direct flame, allowing critical emergency systems to function.
Crucial Distinctions: Flame-retardant cables only prevent the spread of fire; fire-resistant cables actively operate during a fire. Specifying the wrong type introduces severe compliance and safety risks.
Toxicity and Visibility: High-quality marine cables incorporate Low Smoke Zero Halogen (LSZH) materials to prevent the release of toxic, corrosive gases and maintain visibility for crew evacuation.
Rigorous Compliance: Procurement must be dictated by international maritime standards (IEC, IEEE) and classification society approvals (DNV, ABS, Lloyd's Register) rather than upfront cost.
Fires in confined shipboard spaces escalate with terrifying speed. Engine rooms, generator compartments, and electrical switchboard areas contain massive fuel loads alongside high-voltage equipment. When ignition occurs, heat gets trapped against heavy steel bulkheads and deck plates. Temperatures easily exceed 800°C in a matter of minutes. Dense smoke fills narrow corridors, destroying visibility and making manual firefighting exceptionally difficult.
Standard cable insulation cannot survive these extreme conditions. Thermoplastic materials melt, drip, and burn away rapidly. Once the insulation fails, bare copper conductors touch each other or ground out against the steel hull. This creates immediate short circuits. Main breakers trip, and the entire electrical zone goes dark. Water pumps fail to deliver pressure to the hoses. Mechanical ventilation systems shut down, trapping heat and smoke. The crew loses the very tools required to fight the hazard, turning a localized emergency into a total loss of the vessel.
Many contractors assume standard land-based fire cables work on ships. This is a dangerous misconception that leads to system failures. Industrial cables lack the specific environmental protections required at sea. Saltwater causes rapid galvanic corrosion in standard copper braiding and armor. Continuous hull vibration from massive diesel engines fractures rigid land-based conductors over time.
Ambient moisture penetrates standard jackets, degrading the insulation resistance long before a thermal event even occurs. A proper Marine Cable must survive constant dynamic stress. Land cables remain static in dry conduits, but shipboard cables flex with the hull's movement in heavy seas. Using industrial-grade fire cables on a vessel guarantees premature mechanical failure and compromises emergency readiness.
Procurement teams often conflate these two terms, but they dictate entirely different performance metrics. Misunderstanding this distinction leads to catastrophic specification errors.
Feature | Flame-Retardant Cable | Fire-Resistant Cable |
|---|---|---|
Primary Function | Limits fire propagation along a cable tray. | Maintains electrical continuity under extreme heat. |
Behavior in Fire | Self-extinguishes once the external flame is removed. | Actively keeps power flowing while engulfed in flames. |
Circuit Integrity | Fails quickly; insulation melts and shorts out. | Survives for 90-180 minutes using mica tape barriers. |
Application | General lighting, standard power distribution. | Emergency generators, fire pumps, steering gear. |
Specifying a flame-retardant cable for an emergency fire pump means the pump will lose power exactly when you need it to flood the hazard zone.
Circuit integrity is the ultimate success metric for emergency infrastructure. Emergency generators must start and synchronize. Firewater pumps must deliver continuous pressure. Public address systems must broadcast evacuation orders clearly. Steering gear must maintain vessel heading to keep the ship stabilized in rough seas.
We quantify this success using standard time-to-fire-failure metrics. A reliable installation must provide at least 90 to 180 minutes of uninterrupted power at temperatures ranging from 750°C to 1000°C. This specific window allows the crew enough time to suppress the hazard, isolate the affected zone, or safely abandon the vessel if the situation becomes unrecoverable.

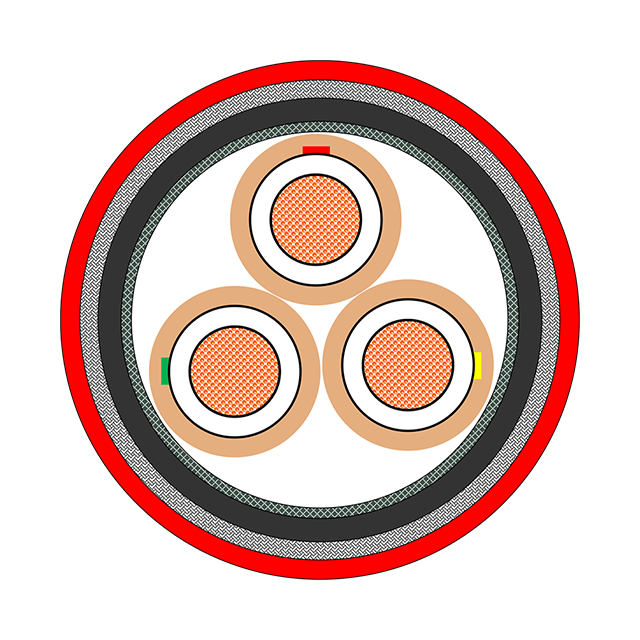

Advanced material science drives circuit integrity. Manufacturers use cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR) for primary insulation. These thermosetting materials resist melting and deformation far better than standard PVC. They handle higher operating temperatures and provide excellent dielectric strength.
The true fire resistance comes from specialized mica tape wrapping. Machines wrap thin, overlapping layers of mica glass tape directly over the bare copper conductors before the primary insulation is extruded. When the outer polymer jacket and primary insulation burn away, the mica tape remains intact. It forms a highly insulating, heat-resistant ceramic layer around the conductor. This physical barrier prevents the bare copper wires from touching each other or the grounded armor.
These materials must also survive severe mechanical shock. Burning cables often face high-pressure water spray from firefighting efforts or falling debris from collapsing bulkheads. The mica layer must hold together under this physical impact while maintaining electrical isolation.
Standard PVC jackets contain halogens like chlorine. When PVC burns, it releases dense, black smoke that instantly blinds anyone in the compartment. It also emits hydrogen chloride gas. This gas mixes with moisture in the air, or the moisture in a crew member's lungs, to form highly toxic hydrochloric acid.
LSZH jackets eliminate this chemical threat entirely. They use alternative polymer blends, such as EVA (Ethylene Vinyl Acetate) heavily loaded with aluminum trihydrate, which contain no halogens.
They produce very light, white smoke, maintaining visibility for safe evacuation and firefighting operations.
They prevent toxic gas inhalation, protecting the crew from lethal respiratory damage.
They stop corrosive acid gas from destroying sensitive electronic equipment, navigation systems, and switchboards in adjacent rooms.
A fire-resistant cable must first survive daily marine stressors before it ever faces a thermal event. It faces continuous saltwater exposure, heavy deck washdowns, and UV degradation on open decks. In engine rooms, it encounters aggressive lubricating oils, hydraulic fluids, and diesel fuel.
Offshore applications demand even more rugged construction. Cables on oil rigs, FPSO units, and offshore wind substations face highly corrosive drilling muds and extreme weather conditions. The outer jacket must resist chemical swelling, cracking, and embrittlement. Furthermore, shipboard routing requires high vibration resistance. The copper stranding must remain flexible enough to absorb constant engine harmonics without suffering metal fatigue at the termination points.
Specifying these cables involves balancing operational security against physical installation constraints. You must understand the practical impacts on your vessel's design and construction phases.
Advantages | Disadvantages & Mitigation |
|---|---|
Guaranteed survival of critical communication and steering systems. | Increased weight per meter. Ensure cable trays and hangers are rated for the extra mechanical load. |
Strict compliance with international maritime laws (SOLAS). | Stiffer bend radius. Plan routing paths with wider sweeping curves to avoid damaging the mica tape. |
Reduction of catastrophic hull or vessel loss. | Complex stripping protocols. Train installers on handling and terminating mica tape properly without tearing it. |
Maintains visibility and breathable air via LSZH jackets. | Higher upfront capital expenditure. Justify the cost via strict risk mitigation and insurance requirements. |
You cannot compromise on testing standards. Rely strictly on the International Electrotechnical Commission (IEC) frameworks to verify performance claims.
IEC 60331: Tests fire resistance and circuit integrity under direct flame at specific temperatures and durations.
IEC 60332: Tests flame retardance and fire propagation along a single or bunched cable installation.
IEC 61034: Measures smoke density using light transmittance to ensure visibility remains high during an event.
IEC 60754: Verifies the halogen content and acidity of emitted gases to confirm true LSZH properties.
Furthermore, you need Type Approvals from major classification societies. Look for valid, up-to-date certifications from DNV, ABS, Bureau Veritas, or Lloyd's Register. These approvals prove the cable meets harsh maritime criteria and will pass port state control inspections.
Different onboard systems require different cable constructions. You cannot use a one-size-fits-all approach.

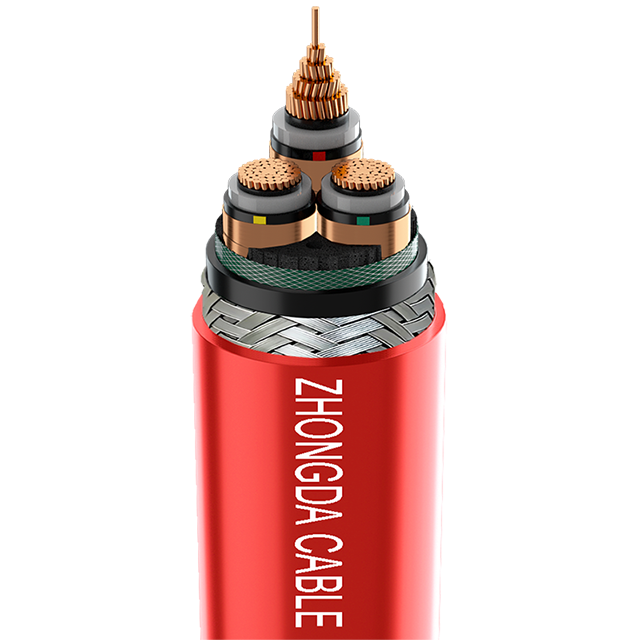

Power cables handle high voltage for main propulsion, thrusters, and heavy deck machinery. They require thick XLPE insulation, large cross-sectional copper areas, and robust armoring to handle high fault currents. Control cables manage automation, valve actuation, and steering gear. They need multiple smaller cores and high flexibility for routing into tight control panels. Instrumentation cables transmit low-voltage data for sensors, fire detection loops, and communication networks. They require individual pair shielding (copper tape or foil) to block electromagnetic interference (EMI) from nearby generators and heavy motors.
Armor selection is also critical for mechanical defense. Galvanized steel wire braid (GSWB) provides excellent mechanical protection against crushing and impact in high-traffic zones. Bronze braid offers superior corrosion resistance for exposed deck areas where saltwater pooling is common.
Fire-resistant cables carry a premium cost compared to standard alternatives. The specialized mica tapes, complex manufacturing processes, and advanced LSZH compounds drive up material expenses. Procurement teams often push back on these costs during the initial bidding phase.
However, you must evaluate this through a strict risk mitigation lens. Calculate the potential financial and human losses of a catastrophic fire at sea. Consider the avoidance of severe non-compliance penalties from maritime authorities and classification societies. High-quality cabling often results in insurance premium reductions because underwriters recognize the lowered risk profile. The upfront investment directly protects the vessel's operational lifespan, cargo, and crew safety.
Routing these cables presents severe physical challenges for shipyard workers. The addition of mica taping, thick LSZH jackets, and heavy metal armoring significantly increases the outer diameter. It also adds substantial weight to the overall cable run.
The resulting cable has a much stiffer bend radius than standard wiring. You cannot force it around tight corners in narrow bulkheads or pull it sharply through deck penetrations. Doing so will tear the internal mica tape, completely destroying its fire resistance before the ship even leaves the dock. Installers must use proper cable pulling techniques, utilizing rollers and appropriate pulling lubricants. Manage cable trays carefully to avoid crushing the lower layers under the massive weight of upper cables.
The grey market poses a massive threat to vessel safety. Low-quality cables often mimic the appearance of certified products. They might even feature fake classification stamps printed directly on the jacket.
These inferior products fail catastrophically under thermal stress. They overheat during normal operation due to impure copper stranding. The jackets break down chemically when exposed to engine oil or UV light. During a fire, they rapidly propagate toxic fumes and fail to maintain circuit integrity for even a few minutes.
Always verify documentation rigorously. Request batch testing reports and certificates of conformity directly from the manufacturer. Inspect physical jacket markings for clear, consistent printing of IEC standards and approval society logos. If the price seems too good to be true, it is likely a counterfeit product.
Even the best cables require routine inspection. Long-term exposure to harsh maritime environments causes gradual wear and tear.
Implement strict inspection protocols as part of your planned maintenance system. Look for jacket cracking caused by UV exposure on open decks. Check for oil swelling or chemical degradation in engine room cable runs. Inspect termination points and grounding glands for galvanic corrosion. Catching these issues early prevents catastrophic failure during an actual emergency.
Specifying fire-resistant marine cable is not merely a regulatory checkbox. It is the definitive line of defense for asset protection and human life at sea. When standard systems fail, these cables ensure you retain control over your vessel's critical emergency responses, allowing your crew to fight the hazard and survive.
To ensure your vessel is properly protected, take the following actions immediately:
Audit your current emergency system cabling to identify any non-compliant, degraded, or standard-grade runs.
Request technical data sheets (TDS) and material safety data sheets (MSDS) from vetted manufacturers to verify LSZH and fire-resistance claims.
Filter suppliers by verifiable classification society approvals and specific environmental resistances required for your operational profile.
Consult with a marine electrical engineer to determine project-specific sizing, voltage drop calculations, and bend radius requirements.
A: Flame-retardant cables self-extinguish to stop fire from spreading along a cable tray once the heat source is removed. Fire-resistant cables use specialized insulation, like mica tape, to maintain electrical power and circuit integrity while actively burning in a fire.
A: High-quality fire-resistant cables are typically rated to maintain continuous electrical power for 90 to 180 minutes at temperatures ranging from 750°C to 1000°C, depending on the specific IEC standard applied during testing.
A: The critical standards are IEC 60331 for fire resistance and circuit integrity, IEC 60332 for flame retardance, IEC 61034 for low smoke emission, and IEC 60754 for zero halogen content.
A: LSZH materials do not release toxic, acidic gases when burned. This protects the crew from lethal inhalation, maintains visibility for safe evacuation, and prevents corrosive damage to sensitive electronic equipment.
A: No. Standard commercial cables lack the necessary environmental protections. They degrade rapidly when exposed to saltwater, continuous hull vibration, engine oils, and extreme ambient moisture found at sea.
A: Low-quality or counterfeit cables can overheat during normal use, suffer premature jacket breakdown, and fail instantly during a fire. They often release toxic fumes and cause immediate short circuits in emergency systems.
A: Yes. The inclusion of mica tape and heavy armoring makes the cable stiffer and heavier. Installers must respect wider bend radii to avoid tearing the internal fire-resistant layers during routing.
