Standard electrical wiring degrades rapidly in high-salinity, high-vibration environments, leading to unpredictable system failures and potential fire hazards. Specifying the correct electrical infrastructure for maritime applications requires balancing extreme environmental resistance with strict regulatory compliance, including ABYC and USCG standards. Selecting inadequate cabling compromises vessel safety and incurs high replacement costs when systems fail offshore. You cannot cut corners when wiring a vessel, as saltwater and constant motion will expose any weakness in the electrical system.
This guide breaks down the structural differences of marine-grade wiring, details its specific applications, and provides a technical framework for evaluating and selecting the right shipboard cable and Marine Cable for specific maritime environments.
Corrosion Resistance is Non-Negotiable: True marine cable features individually tinned copper strands, preventing the rapid oxidation that destroys standard bare copper in saltwater conditions.
Vibration Demands Flexibility: High strand counts provide the necessary flexibility to withstand constant hull pounding and engine vibration without suffering fatigue fractures.
Application Dictates Specification: From heavy-duty shipboard cable for propulsion to shielded wiring for navigational electronics, the use case determines the required gauge, insulation, and certification.
Compliance is Mandatory: Relying on non-marine alternatives (like welding or automotive wire) often voids insurance policies and fails Coast Guard or ABYC safety inspections.
Engineers and boat builders must understand the metallurgical and structural differences that justify the premium cost of marine-grade wiring over standard commercial options. The harsh marine environment demands specific construction methods to ensure longevity and safety. When you open up a bulkhead or crawl into a bilge, the wiring you install there needs to survive conditions that would destroy residential or automotive wire in a matter of months.
The metallurgical advantage of individually tinned strands lies in preventing oxidation and galvanic corrosion in high-salinity environments. Each copper strand is coated with tin at the factory before stranding. This process creates a physical barrier against moisture and salt. Tin does not oxidize as readily as copper, and when it does, the resulting tin oxide remains conductive, unlike copper oxide which acts as an insulator.
Bare copper fails quickly when exposed to marine moisture. Capillary action draws water under the jacket, accelerating corrosion deep within the wire. The copper turns green and brittle, leading to increased resistance, heat generation, and eventual electrical failure. We see this constantly in older refits where someone used cheap wire; the black wire disease creeps feet up the line, requiring massive sections to be cut out and replaced.
Feature | Tinned Copper Marine Wire | Standard Bare Copper Wire |
|---|---|---|
Oxidation Resistance | High (Tin coating protects copper) | Low (Rapidly turns green/black) |
Conductivity over Time | Remains stable | Degrades as oxides form |
Capillary Action Impact | Minimal damage | Moisture wicks and destroys wire |
Lifespan in Bilge | 10+ Years | 1-2 Years |
Strand count directly impacts flexibility and mechanical durability. Marine cables utilize fine stranding, meaning they contain many thin wires rather than a few thick ones. Type 3 stranding is the standard for marine use. This construction allows installers to snake the wire through tight bends, curves, and narrow conduits within vessel hulls without kinking or damaging the internal structure.
High flexibility prevents metal fatigue and conductor breakage caused by constant vessel vibration and wave impact. Solid core wire snaps under these conditions, while finely stranded marine wire absorbs the movement without sustaining damage. Think about a boat slamming into waves at 30 knots; every component shudders. Stiff wire will eventually break at the termination points under that kind of mechanical stress.
Marine-grade PVC and cross-linked polyethylene (XLPE) insulation possess specific chemical properties. They must withstand extreme conditions found on vessels. Required resistance ratings include UV radiation, engine room heat, oil, gasoline, and continuous saltwater immersion. The jacket is the first line of defense against the harsh marine environment.
Standard insulation degrades, cracks, or melts under these stresses. Marine insulation maintains its integrity, protecting the internal conductors from environmental hazards and preventing short circuits. When routing wire through an engine room, the ambient temperature can easily exceed 140 degrees Fahrenheit, and the wire will likely be exposed to diesel fuel and oil vapors. Only specialized marine insulation can survive this.
Flat marine cable is easier to strip, route, and stack in tight spaces. It lays nicely along stringers and bulkheads. Round marine cable offers superior sealing with round compression fittings and multi-directional flexibility. The choice depends on the specific routing path and sealing requirements. If you are passing through a watertight gland, you need round cable to ensure a proper seal.
Single-conductor cables handle high-amperage DC loads like starters, windlasses, and battery banks. Multi-conductor cables bundle several wires into one jacket, simplifying AC/DC shipboard system installations and reducing clutter. Running a triplex cable for an AC outlet is much faster and cleaner than running three individual wires.
Specific systems rely on marine cabling, mapping the application to the required cable specifications. Understanding these categories ensures correct material selection and prevents dangerous system failures while underway.
Main battery banks, alternators, and heavy-duty propulsion wiring require robust solutions. Both recreational boats and deepwater commercial vessels depend on these systems for basic operation. Heavy-gauge, high-amperage cables are necessary for starter motors, thrusters, and windlasses to handle massive current draws without overheating. A bow thruster can pull hundreds of amps; undersized or improper wire will melt the insulation and potentially start a fire.

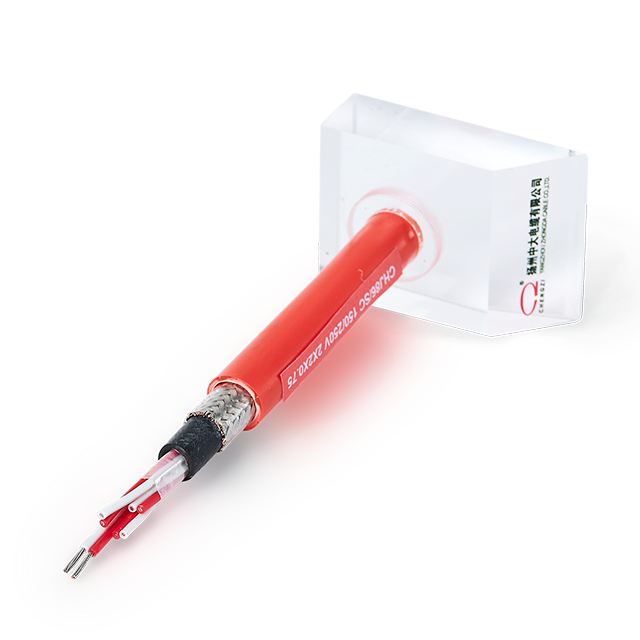

VHF radios, radar, sonar, and GPS systems require shielded marine cables. Proper shielding prevents electromagnetic interference (EMI) from compromising critical navigation data and communication channels. Unshielded wires can act as antennas, picking up noise from engine alternators, inverter chargers, or other electronics. You do not want your depth sounder dropping out because the refrigerator compressor kicked on.
Wiring submerged or frequently wet components requires specialized attention. Waterproof insulation and fault-tolerant wiring are critical in life-safety systems like bilge pumps and high-water alarms. A failure here can result in vessel loss. The connections must be kept above the normal bilge water level whenever possible, and the wire itself must be rated for continuous moisture exposure.
Marine-grade coaxial and Ethernet cables support Wi-Fi networks, satellite links, and entertainment systems. Maintaining signal integrity in a high-moisture, high-interference maritime environment presents a significant challenge. Specialized marine data cables prevent signal degradation and ensure reliable communication between networked displays and sensors.
Commercial ocean-going vessels and offshore drilling platforms have demanding requirements. Armored shipboard cable designs, such as bronze or aluminum basket-weave armor, provide mechanical protection in harsh open-ocean environments where cables face extreme physical abuse. These cables are often routed through massive steel trays and must survive decades of exposure to salt spray and industrial chemicals.
Application | Recommended Cable Type | Key Requirement |
|---|---|---|
Battery Banks & Starters | Single Conductor (Large AWG) | High Amperage Capacity, Flexibility |
VHF & Radar | Shielded Coaxial / Data Cable | EMI Protection, Signal Integrity |
Bilge Pumps | Multi-Conductor (Triplex/Duplex) | Oil/Water Resistance, Tinned Copper |
Cabin Lighting | Duplex Marine Wire | Flexibility, Easy Routing |
Comparing marine cable against common alternatives highlights performance gaps and safety risks. Substituting standard wire compromises the entire electrical system and often violates safety standards.
American Wire Gauge (AWG) sizing is standard in marine applications. Society of Automotive Engineers (SAE) sizing is common in vehicles. SAE wire is up to 12% smaller than AWG wire of the same stated gauge. Substituting SAE wire on a vessel leads to dangerous voltage drops and potential overheating. If a marine schematic calls for 10 AWG, using 10 SAE means you are installing a physically smaller conductor, which cannot handle the same current safely.
Welding cable offers high flexibility and amperage capacity, making it a tempting alternative for battery runs. However, welding cable lacks individually tinned copper strands. Its insulation is rarely rated for oil, gasoline, or wet engine room exposure. Using welding cable in marine environments invites rapid corrosion and insulation failure. The jacket will swell and degrade when exposed to diesel, and the bare copper inside will turn black and brittle within a few seasons.
Solid-core Romex (NM) or Underground Feeder (UF) cables are strictly prohibited in marine environments. While UF cable has a moisture rating, it lacks flexibility. It is highly susceptible to mechanical vibration fractures and cannot withstand petroleum-based chemicals found in bilges and engine rooms. Installing solid core wire on a boat is a guaranteed path to electrical failure as the wire will snap at the connection points due to hull flex and engine vibration.
Specifying the exact cable needed for a project requires balancing cost, safety, and performance. A structured approach ensures system reliability and compliance with maritime standards.
Calculating voltage drop is critical for 12V and 24V systems. Aim for a maximum 3% drop for critical safety and navigation systems (bilge pumps, VHF, navigation lights), and 10% for non-critical systems like cabin lighting. Determine the correct AWG based on the round-trip circuit length and the total amperage draw of the device.
Determine the total amperage draw of the appliance or device.
Measure the distance from the power source to the device and back to the ground bus (round-trip length).
Consult an ABYC voltage drop table to find the intersecting AWG size.
If the run passes through an engine room, upsize the wire to account for ambient heat derating.
Industry standards dictate marine electrical safety. ABYC (American Boat and Yacht Council), USCG (U.S. Coast Guard), UL 1426 (standard for cables on boats), and IEEE 45 govern these installations. Utilizing non-certified cabling impacts liability, voids insurance claims, and compromises vessel seaworthiness. Surveyors will flag non-compliant wire, and insurance companies will deny claims if a fire is traced back to improper materials.
Match cable specifications to specific vessel zones. Engine rooms require higher temperature ratings, often 105°C. Mast wiring requires extreme UV resistance to survive years in the sun. Bilge wiring demands superior oil and water resistance. Always select the cable jacket that exceeds the maximum expected environmental stress for that specific zone.
Even the highest-quality marine cable will fail if installed or terminated incorrectly. Proper technique is essential for system longevity and safety.
Marine cables must be terminated with marine-grade, tinned copper lugs and closed-end connectors. Never use wire nuts on a boat; they vibrate loose and allow moisture in. Adhesive-lined heat shrink tubing creates a watertight seal. This prevents moisture ingress at the connection point via capillary action, which would otherwise destroy the wire from the inside out.
Strip the wire carefully, ensuring no copper strands are cut or nicked.
Slide the adhesive-lined heat shrink over the wire.
Crimp the tinned copper connector using a proper ratcheting crimper to ensure a cold weld.
Slide the heat shrink over the connector barrel and apply heat until the adhesive oozes out the ends, sealing the joint completely.
Secure shipboard cable to prevent vibration fatigue using cushioned cable clamps or marine-grade zip ties every 18 inches. Observe minimum bend radius rules to prevent damaging the internal copper stranding and jacketing when snaking cables. Implement chafe protection, such as grommets or loom, when routing cables through bulkheads and structural members. A wire rubbing against a raw fiberglass edge will eventually short out.
Marine cable is a highly specialized component engineered specifically to combat corrosion, vibration, and chemical exposure. It is not interchangeable with standard wiring, and attempting to save money with automotive or residential wire will lead to catastrophic failures. Proper selection and installation are the foundation of a safe and reliable vessel.
Audit your current electrical schematics to identify any non-compliant or bare copper wiring.
Calculate the required gauge for acceptable voltage drop before purchasing any new wire for upgrades.
Verify that all new wire purchases carry the UL 1426 certification and feature tinned copper construction.
Consult with a certified marine electrician for complex installations or high-amperage battery bank configurations.
A: Marine cable features individually tinned copper strands to prevent corrosion, a high strand count for extreme flexibility to withstand vibration, and specialized insulation rated for oil, gas, water, and UV exposure. Regular wire uses bare copper and stiffer stranding, which fails quickly in saltwater environments.
A: No. Welding cable lacks tinned conductors, making it highly susceptible to corrosion in saltwater environments. Additionally, its insulation is usually not rated for exposure to oil, gasoline, or the harsh conditions found in a vessel's engine room.
A: UL 1426 is the Underwriters Laboratories standard specifically for electrical cables used on boats. It ensures the cable has been rigorously tested and meets strict requirements for flexibility, corrosion resistance, and insulation durability in marine environments.
A: Solid core wire lacks flexibility. The constant vibration from engines and wave impact causes solid wire to suffer metal fatigue, eventually snapping and causing electrical failures or fire hazards. Marine environments require finely stranded wire to absorb this movement.
A: Calculate the round-trip circuit length (from the power source to the device and back) and determine the amperage draw. Use a marine wire sizing chart to select an AWG that ensures a maximum 3% voltage drop for critical systems or 10% for non-critical systems.
A: While specific laws vary, USCG regulations and ABYC standards strongly dictate the use of proper marine-grade wiring for safety. Failing to use compliant cable can result in failed inspections, denied insurance claims, and severe liability in the event of an accident.
