Engine rooms act as the beating heart of any vessel. They also represent the harshest operational environment your onboard electrical systems will ever face. Extreme heat, relentless mechanical vibration, saltwater vapor, and caustic chemical exposures create the perfect storm for catastrophic failure. Relying on standard household or automotive wiring in these high-risk zones actively invites disaster.
A truly safe installation requires strict protocols to ensure zero electrical fires and long-term signal reliability. You cannot afford unexpected voltage drops or hidden mechanical fatigue when operating miles offshore. Finding a failure mid-journey puts both crew and vessel at severe risk.
We will break down exactly how to bridge the gap between selecting proper materials and executing a fully compliant layout. You will learn the strict rules for thermal derating, secure routing, and vibration-proof terminations. By following these evidence-based steps, you guarantee compliance with international maritime safety standards.
Material selection is non-negotiable: Only UL 1426 compliant, tinned stranded copper marine cable survives engine room vibration and corrosion.
Factor in thermal and bundling derating: Engine room temperatures (calculated at 50°C/122°F) and cable bundling require strict ampacity derating to prevent overheating.
Nylon ties are a hazard: Securing cables over moving machinery requires rubber-coated metal P-clamps; nylon becomes brittle and snaps in high heat.
Mechanical crimping over soldering: Standards prohibit soldering as the sole means of mechanical connection due to vibration stress.
Constant harmonic vibration shreds rigid materials rapidly. Solid copper wire, like the type commonly used in residential construction, cannot flex safely. Standard automotive wire suffers a similar fate onboard. They harden, become highly brittle, and eventually snap under the continuous mechanical stress of heavy diesel or gas engines. Marine engines produce frequencies that directly target weak metal joints. This work-hardening phenomenon aggressively destroys non-compliant conductors.
Engine compartments routinely operate at severely elevated temperatures. This intense ambient heat rapidly accelerates the breakdown of cheap PVC insulation. Once the outer jacket degrades, the newly exposed conductors create immediate short-circuit risks. You need specialized insulation designed specifically to withstand this constant thermal assault. Standard automotive jackets will quickly melt and fuse together under heavy operational loads.
Saltwater vapor acts as an invisible, highly conductive electrolyte. It attacks bare copper aggressively and persistently. Bare strands oxidize rapidly in this damp, enclosed atmosphere. Oxidation sharply increases electrical resistance at connection points. This added resistance generates dangerous localized heat. Thermal buildup often leads to catastrophic smoldering or full electrical fires inside the compartment.
Proper wire construction dictates survival in the bilge. You must specify tinned stranded copper exclusively. Manufacturers coat each individual copper strand in tin before twisting them tightly together. This specialized tin coating acts as a physical shield against rapid oxidation. Meanwhile, the multi-strand internal design provides the crucial flexibility needed to absorb relentless mechanical shock.
Choosing the proper Marine Cable requires verifying global certification standards. North American installations must strictly meet UL 1426 specifications. This rigorous standard guarantees adequate safety and active flame retardance. The outer jacket must successfully resist oil, moisture, and extreme heat. For international compliance, materials must align with the widely accepted IEC 60092 series. Specifically, you should reference IEC 60092-352 for installation protocols. You must also check IEC 60092-350 for general construction rules.

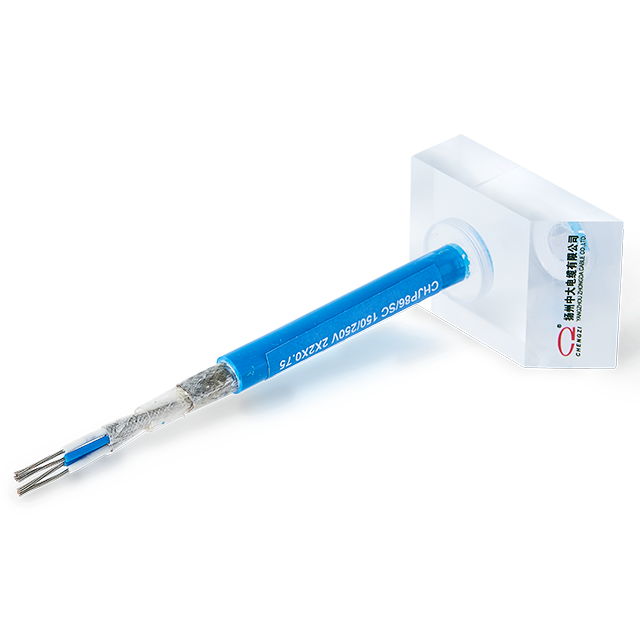

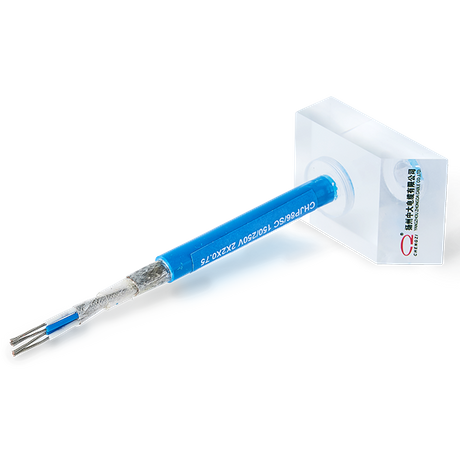

Complex vessel electronics demand specialized protection against electromagnetic interference (EMI). Heavy alternators, large inverters, and high-capacity pumps generate severe electromagnetic fields. Heavy engine noise easily disrupts sensitive navigational signals. Utilizing heavily shielded Marine Cable eliminates these erratic disruptions. Variable Frequency Drive (VFD) lines also require thick internal shielding to prevent signal bleeding across your vessel network.
Feature | Standard Automotive Wire | Certified Marine Grade Wire |
|---|---|---|
Conductor Material | Bare Copper (Oxidizes quickly) | Tinned Copper (Resists oxidation) |
Strand Count | Low/Thick Strands (Stiff) | High/Fine Strands (Highly flexible) |
Insulation Rating | Usually max 90°C, limited chemical resistance | Up to 105°C dry/75°C wet, resists oil/fuel |
Compliance | SAE general standards | UL 1426, ABYC, IEC 60092 compliant |
The American Boat and Yacht Council (ABYC) sets strict baseline assumptions for temperature. They calculate engine rooms as operating at a continuous 50°C (122°F). This high ambient heat significantly restricts how much current a wire can safely carry. You must mathematically derate the maximum current-carrying capacity (ampacity) by 15% before finalizing any installation. Failing to derate correctly causes the internal copper to overheat rapidly.
Heat also accumulates quickly when you route multiple conductors tightly together. This cable bundling penalty demands further capacity reduction to prevent melting. Wires cannot dissipate heat effectively when touching one another continuously in a harness. We outline the mandatory derating framework below:
Number of Wires Bundled | Required Ampacity Capacity Reduction |
|---|---|
3 wires bundled | 30% capacity reduction |
4 to 6 wires bundled | 40% capacity reduction |
7 to 24 wires bundled | 50% capacity reduction |
Finally, voltage drop thresholds define the absolute limits for safe electrical operation. Critical electronics and navigation systems require a maximum voltage drop of just 3%. Non-critical systems, such as general cabin lighting, can tolerate up to a 10% drop. Exceeding these limits forces equipment to work much harder. Motors will draw excessive current to compensate, generating dangerous heat and risking premature mechanical failure.
Many DIY boaters fall into the dangerous nylon tie trap. They use cheap plastic zip-ties to organize their heavy power runs. Ambient heat causes standard nylon to embrittle quickly. They will snap unexpectedly, dropping live conductors directly onto hot exhaust manifolds. You must mandate the use of rubber-coated metal "P-clamps" for securing runs. These rigid clamps safely support heavy lines above moving machinery and high-heat exhaust components.
Compliance requires strict adherence to the 18-inch rule. You must physically support every heavy wire run at least every 18 inches. Proper support spacing prevents dangerous wire sagging over long distances. It also completely eliminates vibration-induced chafing against rough fiberglass hulls. We highly recommend using heavy-duty stainless steel fasteners to secure these metal clamps.
System isolation forms another critical pillar of safe routing strategy. You must physically separate high-amperage power supply lines from low-voltage signal lines. This strict physical separation eliminates magnetic interference between the two distinct systems. We highly recommend using specialized twisted pairs near compasses. Twisted pairs effectively neutralize disruptive magnetic fields from altering sensitive analog readouts.
When lines pass through structural engine room bulkheads, chafe protection becomes vital. Mandate the strict use of watertight grommets and approved fire barriers. You must also implement proper strain relief techniques. Quality strain relief ensures that violent structural shifts do not tear the wiring apart during heavy seas. Never allow a wire to rest bare against a drilled fiberglass edge.
The ABYC E-11 standard dictates a strict "no solder only" rule. You cannot rely on solder as the sole mechanical connection between two wires. Solder wicks up the internal copper strands very easily. It creates a rigidly hard point in an otherwise flexible wire layout. This solid transition zone becomes a prime failure point for severe vibration-induced snapping.
We strongly recommend executing all mechanical crimps using high-quality marine terminals. You should pair these reliable terminals with adhesive-lined heat shrink tubing. The melted adhesive positively seals out damaging moisture and corrosive salt vapor. Sealing the connection properly triples its functional lifespan.
Follow these core execution steps for optimal electrical connections:
Strip the outer insulation back carefully to expose clean, bright strands.
Insert the stripped wire fully into the certified marine terminal barrel.
Compress the metal fitting precisely using a ratcheting marine crimp tool.
Apply steady heat to the shrink tubing until the internal glue extrudes visually.
A properly executed crimp must survive a standardized pull test. It must hold significant mechanical weight without failing or slipping. For example, a 10 AWG connection should easily withstand a 40 lb physical pull test. If the wire slides out of the terminal, you must cut it off entirely and try again.
Terminal stacking on battery posts or heavy busbars requires strict numerical limits. You can place a maximum of four ring terminals per individual stud. Always install the terminal carrying the highest ampacity directly at the bottom. It must sit completely flush against the metal base. This exact order minimizes electrical resistance for the heaviest active loads on your electrical panel.
Never seal heavy bulkheads or close permanent access panels without performing rigorous baseline testing first. Verifying total system health ensures complete safety before you introduce live battery power to the grid. Skipping these vital checks often results in immediate breaker trips or hidden thermal events.
First, conduct a thorough continuity test across all systems. Use a calibrated multimeter to verify unbroken electrical circuits across the entire vessel. Next, perform detailed insulation resistance measurements using a specialized meter. This specific test checks for hidden micro-abrasions along the jacket. It also flags early insulation degradation caused during the physical routing process. Identifying a pinched Marine Cable early saves hours of painful troubleshooting later.
Long-term electrical safety relies heavily on routine visual and mechanical checks. You should establish a firm monthly maintenance schedule for the engine room. Inspect all main battery and busbar terminals for early signs of green chemical corrosion. Verify the structural integrity of every rubber P-clamp installed along the hull. Finally, actively look for dried salt accumulation on the outer sheathing. Clean it promptly using fresh water on a damp cloth to prevent further chemical degradation.
Safe engine room wiring heavily relies on proactive risk mitigation. You must enforce strict thermal derating rules to account for extreme ambient heat. Utilizing heavy vibration-resistant hardware protects critical systems from hidden mechanical fatigue. Uncompromising material certification standards ensure your vessel survives harsh, corrosive ocean environments year after year.
We advise auditing your current wiring layout against the latest safety compliance standards immediately. Identify any unsupported segments or brittle plastic ties. Source certified tinned wire and specialized ratcheting crimp tools before you begin your next major upgrade. Take action now to replace unsafe connections before they fail underway.
A: No. SAE automotive wire is typically bare copper, which corrodes rapidly in harsh marine environments. Furthermore, standard automotive insulation is not rated for the extreme heat, harsh oil, and constant water exposure found inside vessel engine rooms. Always use certified tinned stranded marine wire.
A: Solder wicks up the internal wire strands, creating a hard, brittle section. In a constantly vibrating engine room, the wire will eventually fatigue and snap exactly where the solder ends. Strict maritime standards require mechanical crimping to maintain flexibility.
A: Cables must be physically supported at least every 18 inches. You must use appropriate maritime hardware, such as rubber-coated metal P-clamps. This specific spacing prevents dangerous sagging, chafing, and strain on the terminal connections.
